Ziwei Li
MARCH CANDIDATE, SAIC · 2026
3RD PLACE, CHARLES PETERSON PRIZE '25

Ziwei Li

Architectural / Interior Designer — Chicago, IL

Spatial design, told like a story.

Interior architectural designer based in Chicago, blending an interdisciplinary background in animation with human-centered spatial design — from concept narrative through construction detail.

Selected Work

Selected Work

Community platforms, adaptive reuse, and biophilic interiors — each one built by listening to its site first.

5 PROJECTS SHOWN

01

Community / All-Timber Structure / Disaster Resilience

The Irifune Root

Urayasu, Chiba, Japan · 2026

A platform for daily life and disaster response, raised 31 feet above four underused lots in a residential neighborhood built on reclaimed land — doubling as everyday gathering space and, when the ground shakes, an emergency evacuation route.

View Project →

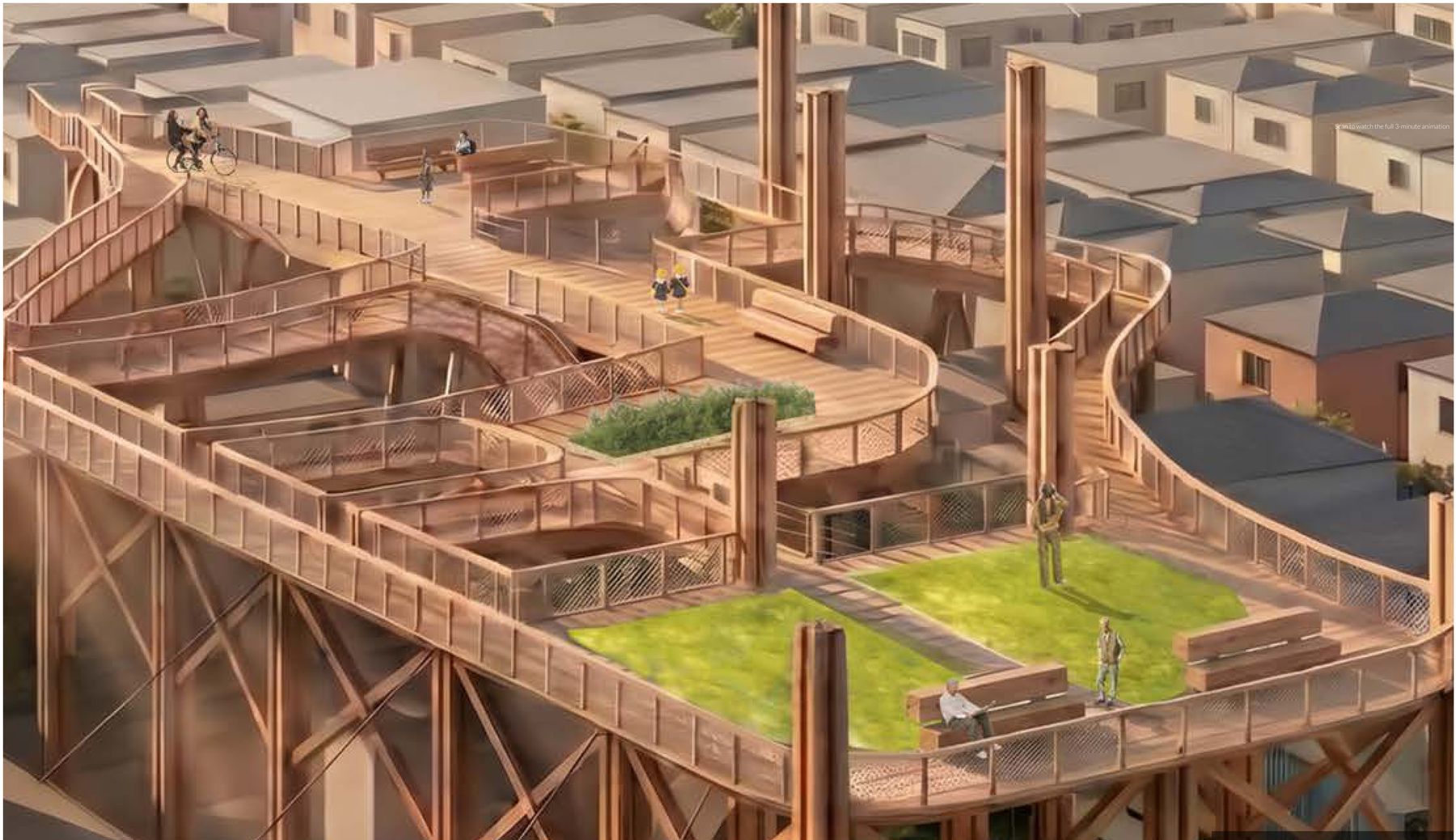

Aerial rendering of the elevated timber platform winding above a residential neighborhood Rendering — Platform Overview

02

Adaptive Reuse / Historic Terra-Cotta / Student Housing

The Y Atrium

202–208 S State St, Chicago · 2025

A 1915 terra-cotta office tower and a new neighbor are threaded together by a funnel-shaped atrium, turning student housing for SAIC into a building organized around shared light rather than a corridor.

View Project →
Interior rendering of the funnel-shaped atrium gallery at The Y Atrium Rendering — Atrium Gallery

03

Interior Design / Biophilic Workplace / Adaptive Reuse

Northerly Green

Northerly Island, Chicago · 2025

The former Meigs Field Airport terminal is reopened as a biophilic workplace — walls dissolve into fluid workspaces around a planted atrium, with Lake Michigan and the skyline framing sun-washed lounges.

View Project →
Exterior rendering of the renovated former airport terminal at Northerly Green Rendering — Exterior, Northerly Island

04

Civic / Educational / Botanic Architecture

Photosynthesis Crystal

328 S Wabash Ave, Chicago · 2024

A year-round botanical education center along the Loop's elevated tracks, organized around light, water, and plants — funnels in the folded roof channel water and daylight through the building as a visible process.

View Project →
Exterior rendering of Photosynthesis Crystal, an educational and botanic architecture project in Chicago's Loop Rendering — Exterior, The Loop

05

Construction Detail / Studio Project / Hand Rendering

Other Works

Chicago, IL · 2022–2026

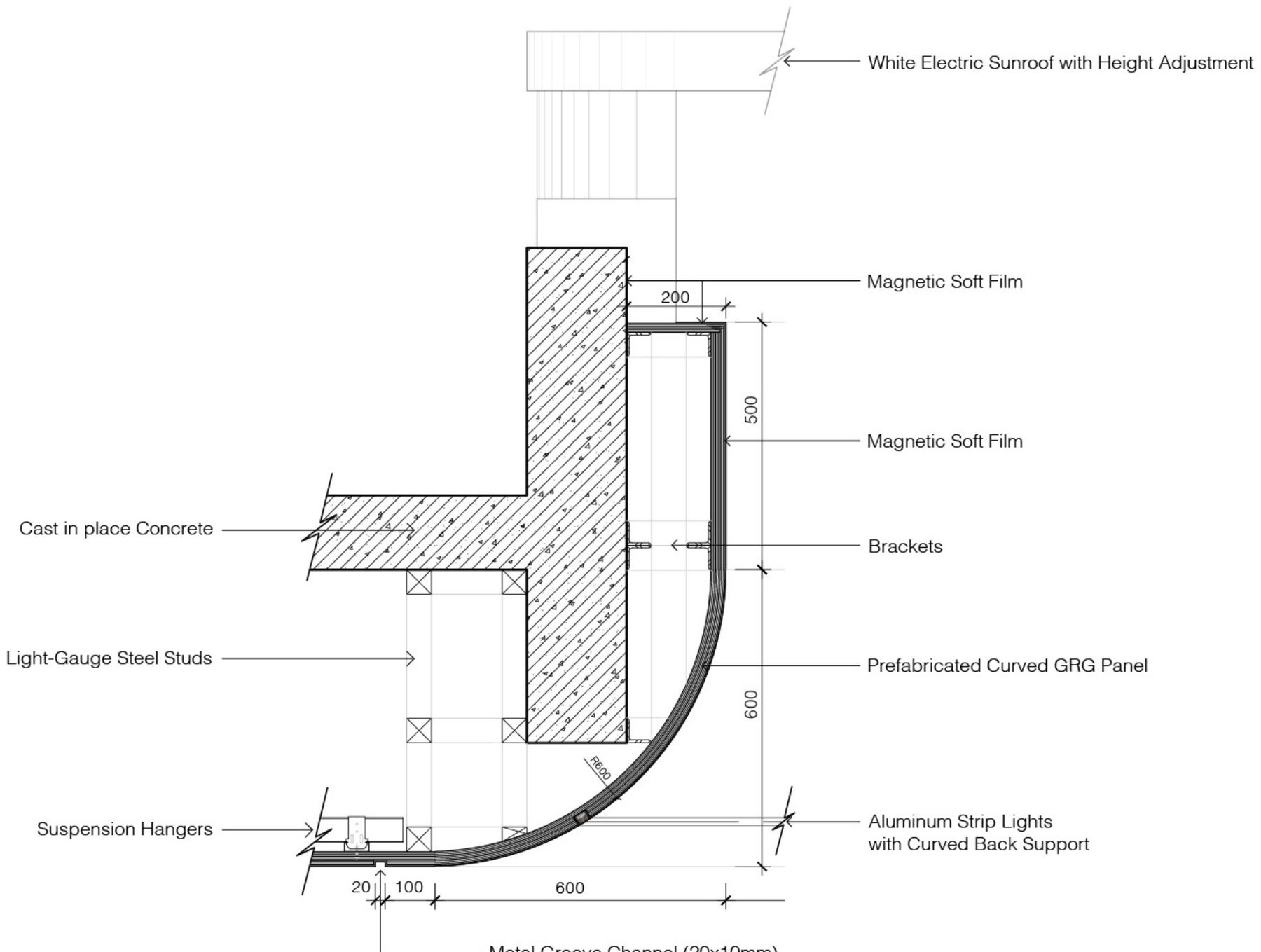

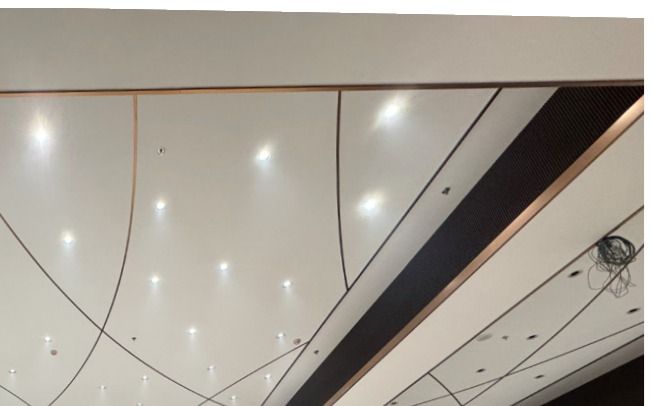

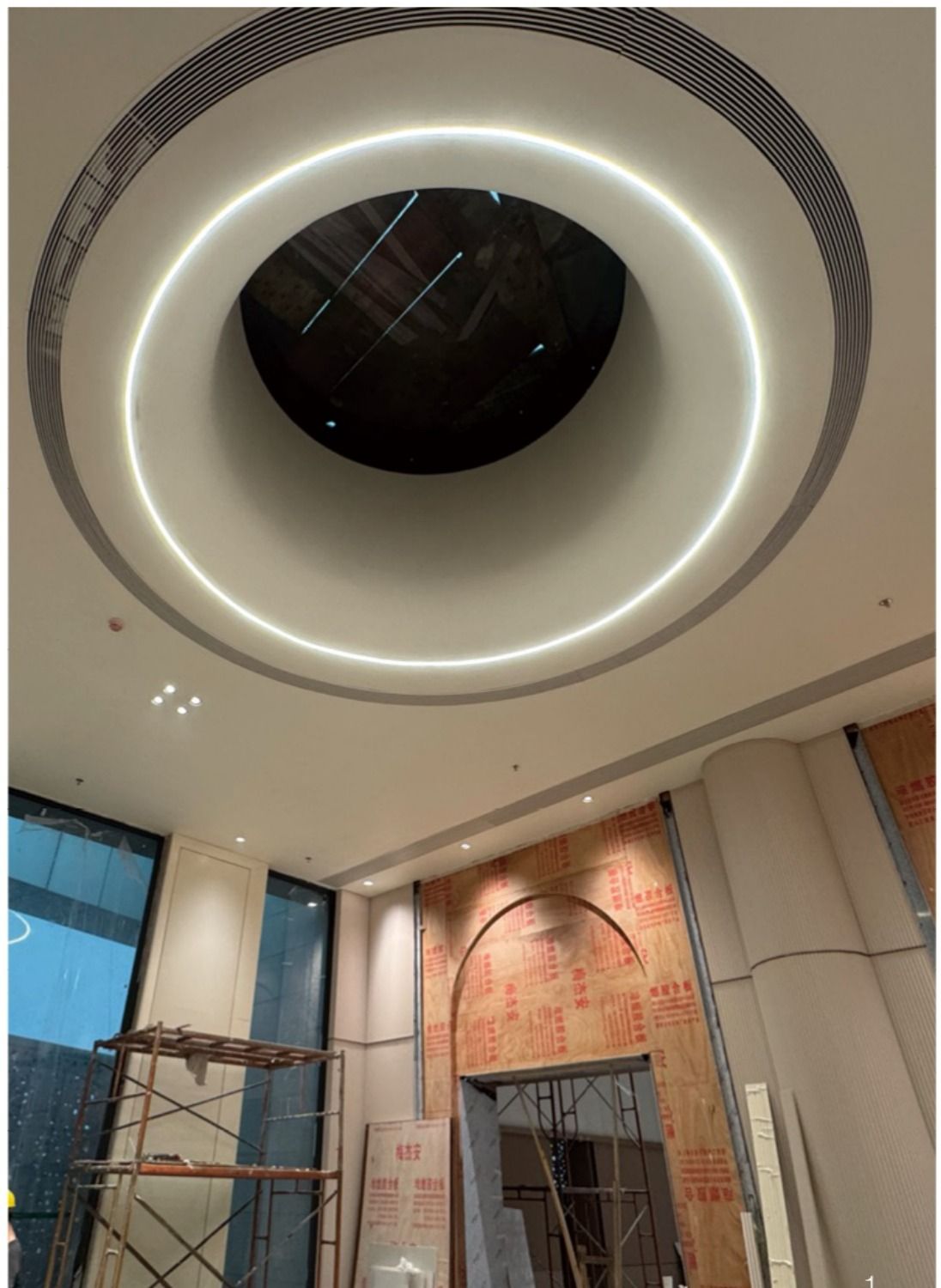

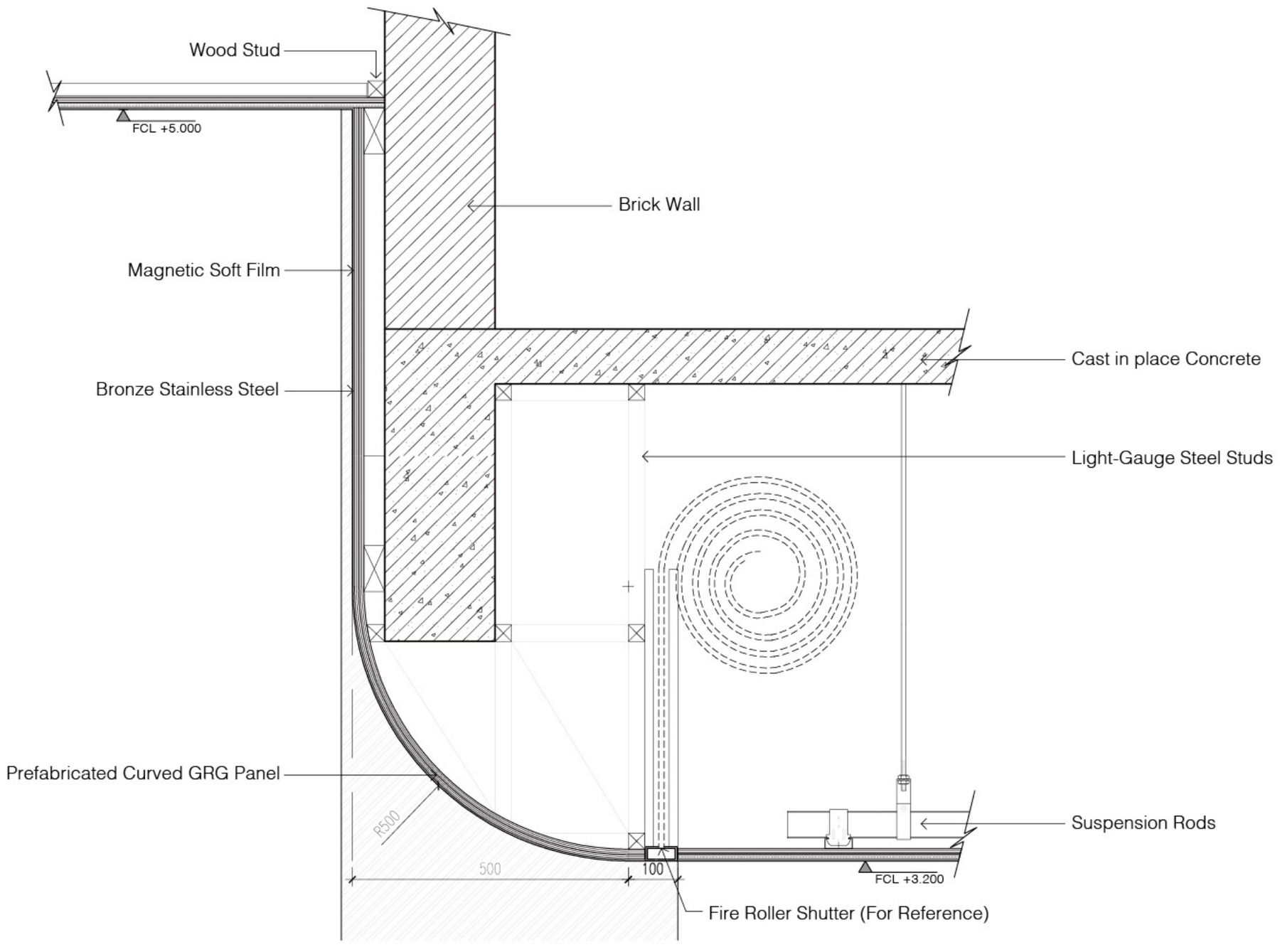

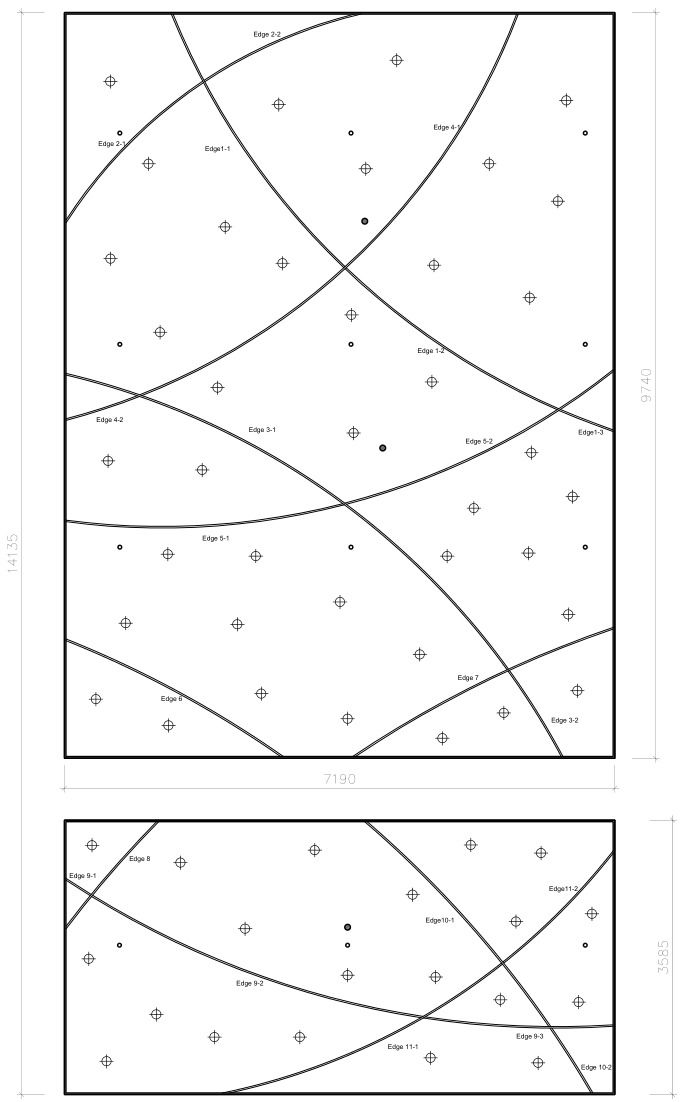

Construction detailing from an internship at Zhengyi Interior & Engineering, a mechanical/structural studio project for a Miami natatorium, and marker renderings — the range of hand and technical work behind the rest of the portfolio.

View Project →
Marker rendering of a lounge and bar interior Marker Rendering — Lounge Interior

About

Trained in animation, grounded in architecture — designing spaces around narrative and human experience.

Site Animation — The Irifune Root

I'm an interior architectural designer based in Chicago, with a NAAB-qualified education and an interdisciplinary path that started in animation before moving into spatial design. That background shapes how I work — I think about a space the way I'd think about a scene: who moves through it, what they notice first, and how the sequence unfolds.

In practice, that means pairing narrative thinking with technical rigor: developing ideas in Rhino and Revit, testing them through physical models, and carrying them through to lighting, material, and fabrication decisions on real projects.

BFA, Animation — Guangdong University of Technology

MArch, Interior Architecture — School of the Art Institute of Chicago

Teaching Assistant, Eco Design & Design Drawing — SAIC

3rd Place — Charles Peterson Prize Competition

Architectural Designer Intern — Zhengyi Interior & Engineering, China

Architectural Designer — Dingiding Gallery, Expo Chicago 2026

Contact

jerry130526@gmail.com
Phone

312 961 7240

Portfolioziweiliarch.com
Location

Chicago, IL

← Back to All Work

Community / All-Timber Structure / Disaster Resilience

PROJECT 01 / 05

The Irifune Root

3 Chome Irifune, Urayasu, Chiba, Japan · MArch Thesis, 2026

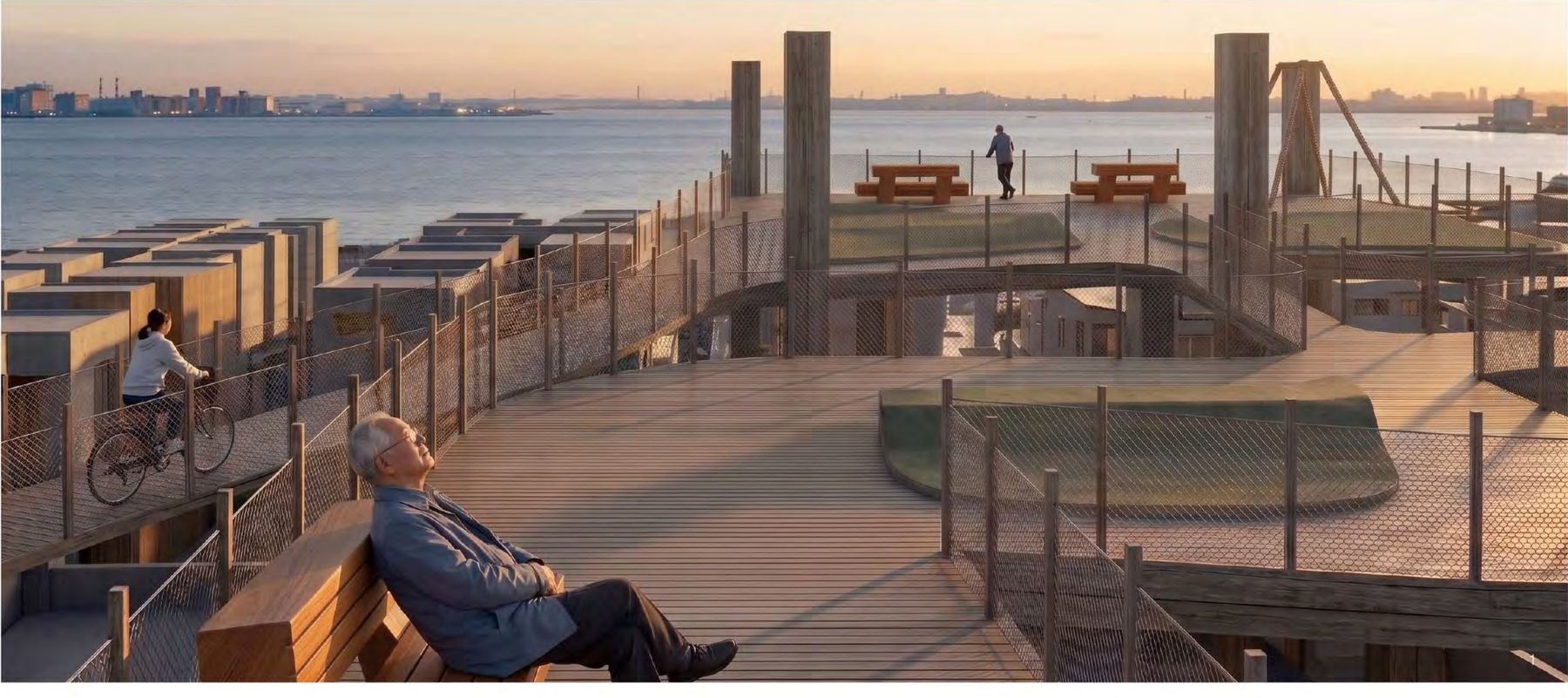

Residents on the elevated timber platform at dusk, looking out over Tokyo Bay Rendering — Platform at Dusk, Facing Tokyo Bay

The Irifune Root is a platform for daily life and disaster response, built above four underused open spaces in a traditional residential neighborhood in Urayasu, Chiba — land vulnerable to soil liquefaction since the 2011 Great East Japan Earthquake. Raised 31 feet on an all-timber structure, it works as a gathering space day to day and an elevated refuge when the ground shakes.

SiteReclaimed Land, since 1960
Platform Elevation31 ft (9.4 m)
StructureAll-Timber, Mortise-and-Tenon
Support SystemV-Cable + Suspension Span
Community~1,600 Residents
StatusMArch Thesis, 2026

Site

The project sits in Irifune 3-chome, Urayasu — land reclaimed from Tokyo Bay by the Japanese government in 1960. The opening of Shin-Urayasu Station gave the area strong transit links and turned it into a thriving residential neighborhood, but the 2011 Great East Japan Earthquake caused severe soil liquefaction across the reclaimed ground.

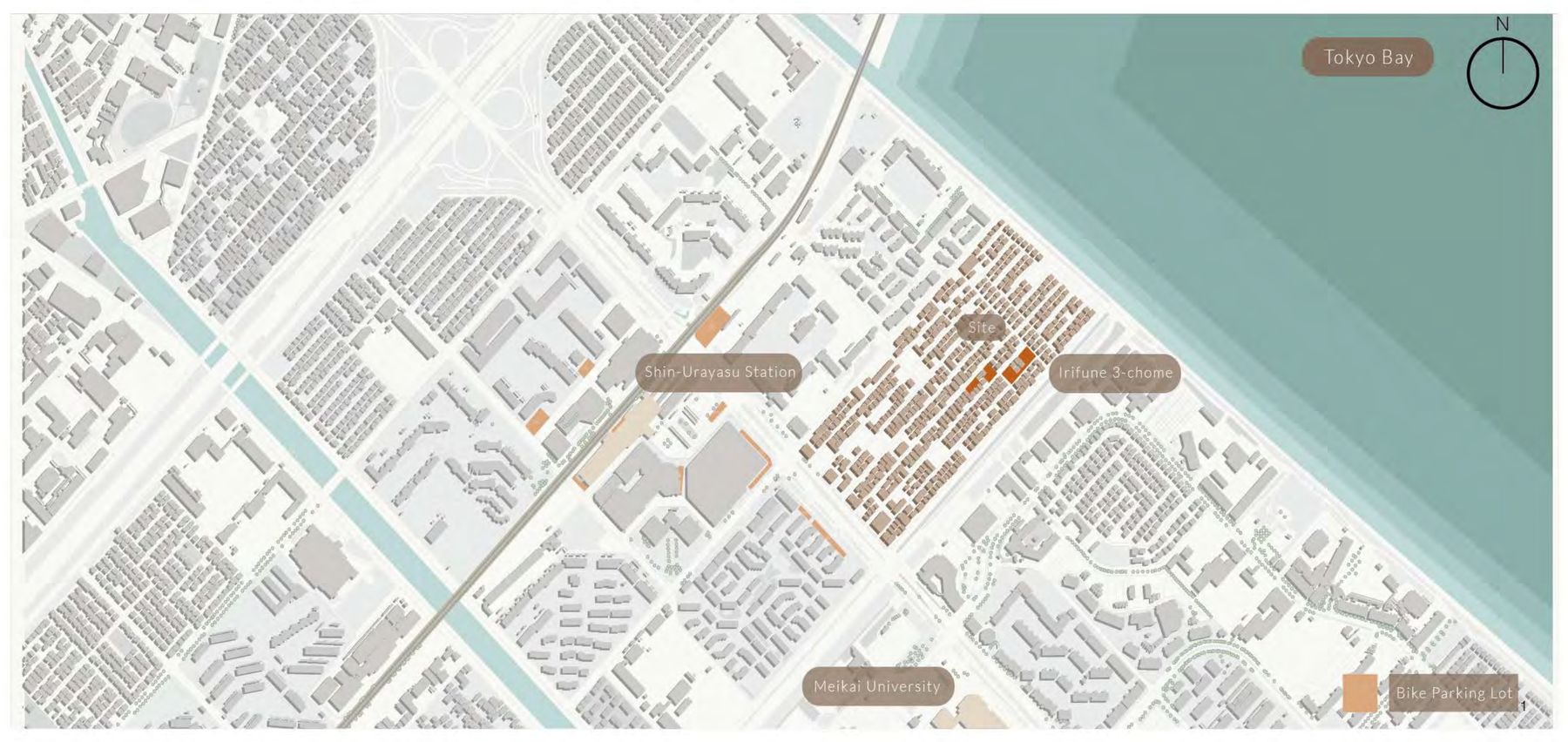

Site map showing the project location in Irifune 3-chome, between Shin-Urayasu Station and Tokyo Bay
Site Map — Irifune 3-Chome

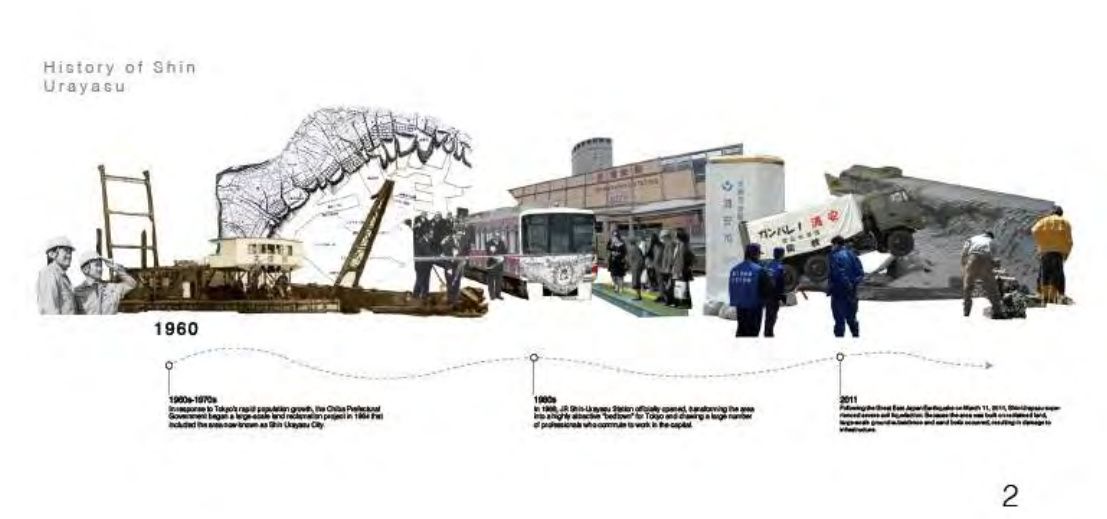

Timeline of Shin-Urayasu's history, from 1960s land reclamation through the 2011 earthquake
History of Shin-Urayasu

Community

The neighborhood has a permanent population of about 1,600 and is aging quickly. Residents cluster around the station, while much of the community's own open space sits underused. There is no government-certified temporary shelter at the station or within the neighborhood — a real risk for elderly residents and children if a major earthquake or tsunami hits again.

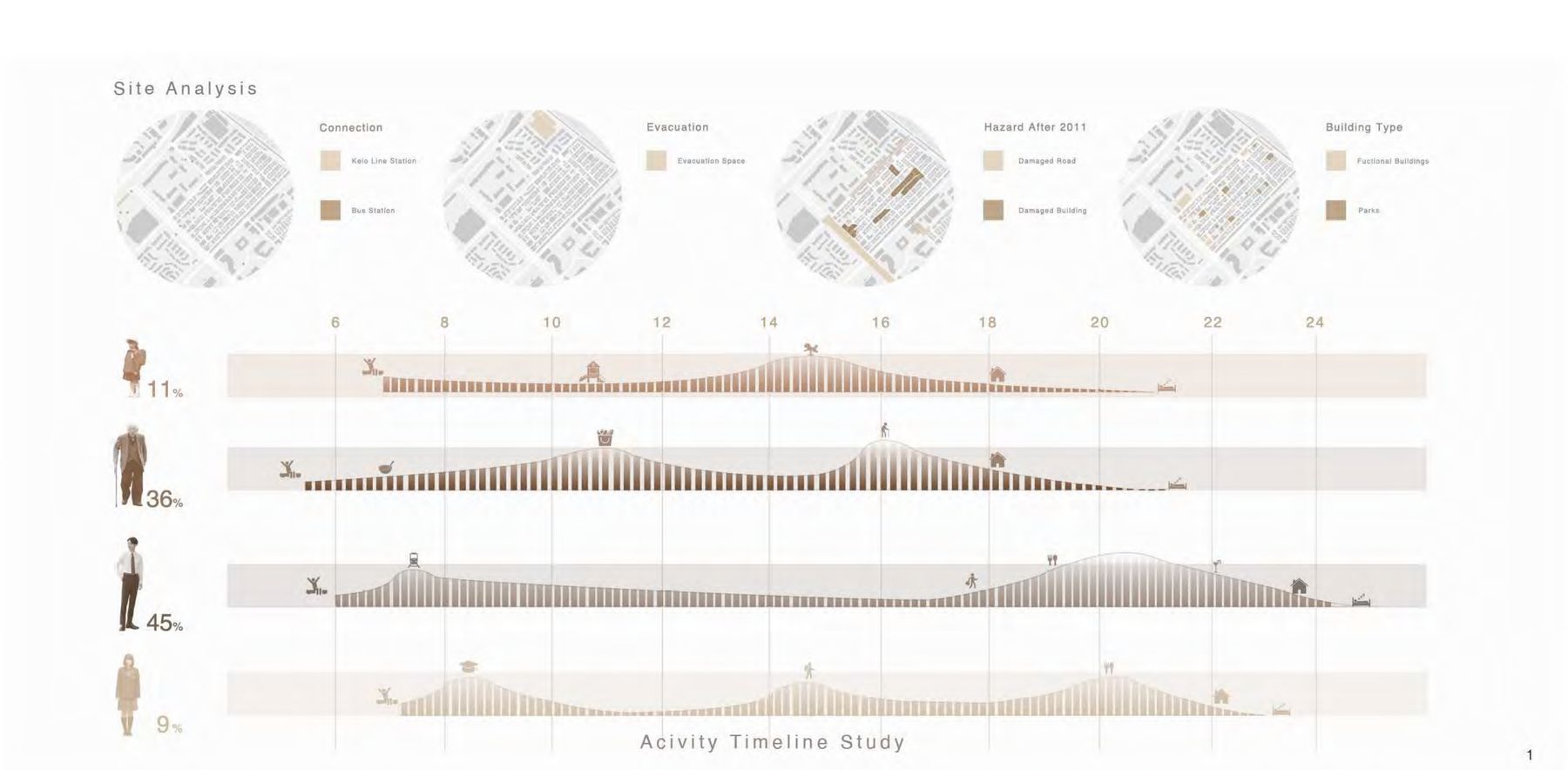

Site analysis diagrams showing connections, evacuation space, 2011 hazard damage, building types, and an activity timeline by age group
Site Analysis & Activity Timeline Study

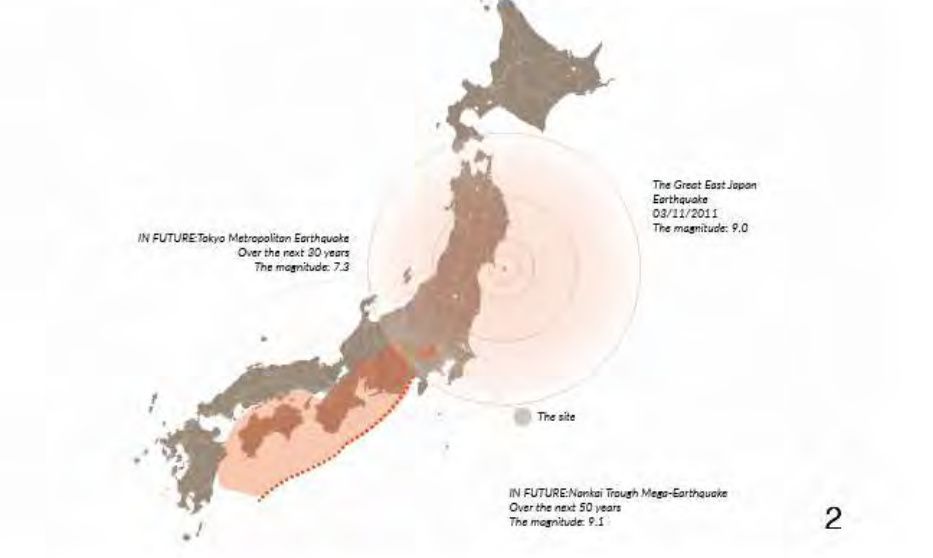

Map of Japan showing projected future earthquake risk near the site
Future Earthquake Risk, Japan

Concept

To address both concerns at once, the design links four scattered open lots — a flower garden, a community playground, a public parking lot, and a vacant lot — with a single elevated platform. Built above rather than through the neighborhood, it protects residents' privacy at ground level while giving the community a shared structure built for both daily use and disaster response.

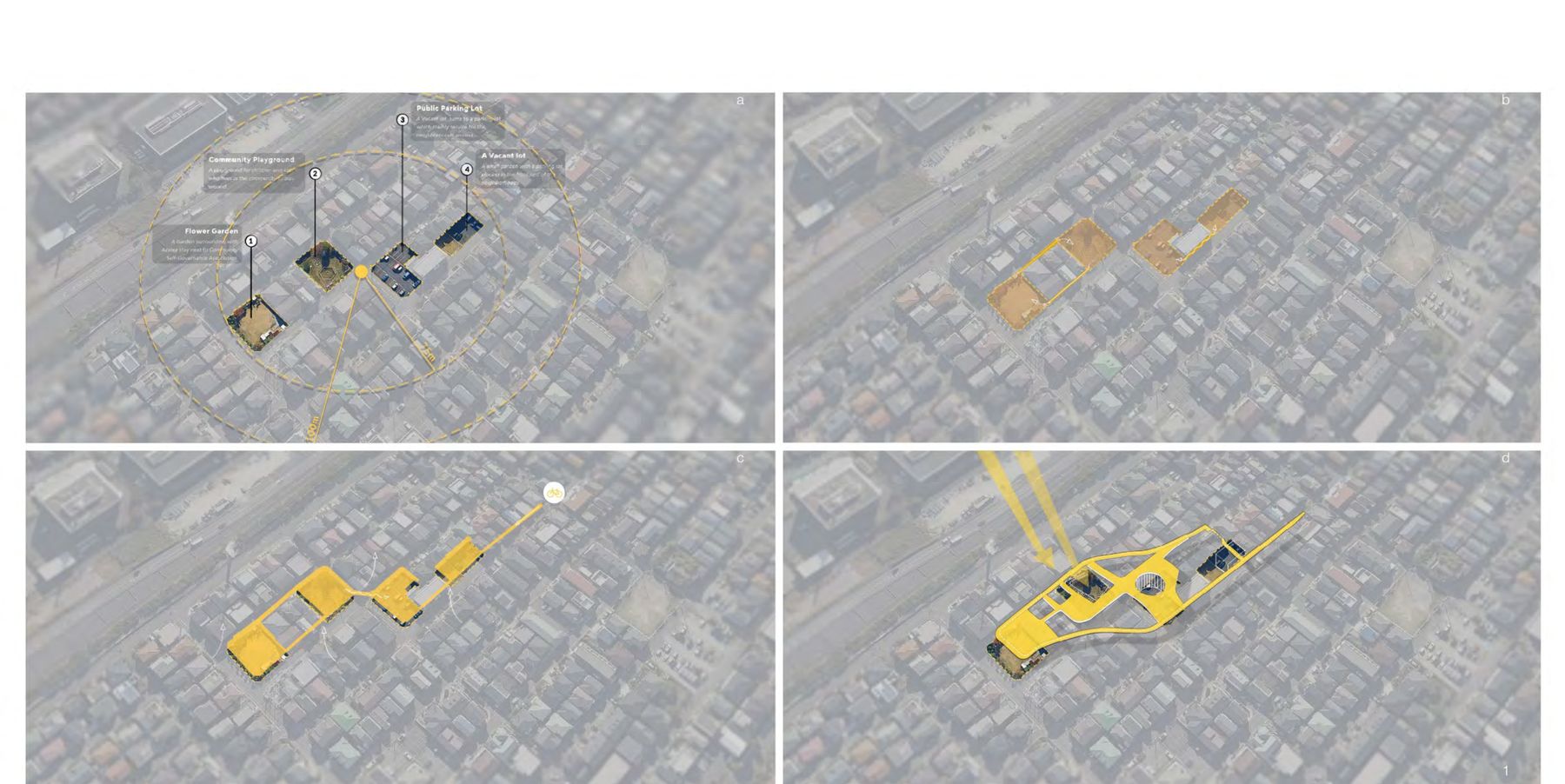

Four-step design process diagram: locating the four open lots, defining their footprints, connecting them with a path, and lifting the platform above
Platform Design Process

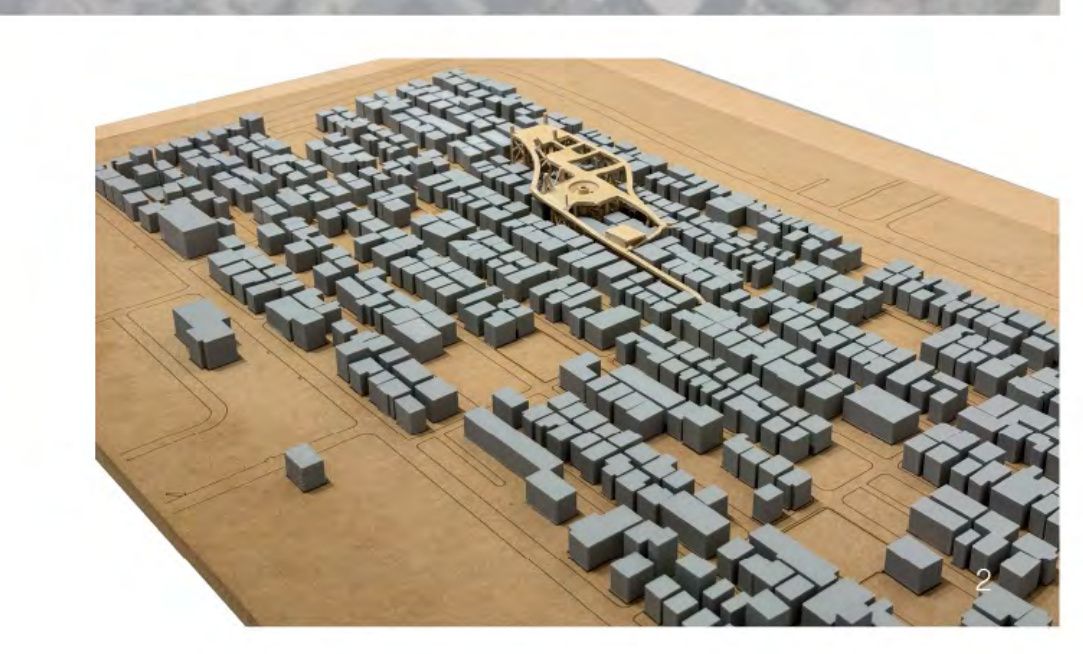

Physical model of the whole community with the elevated platform highlighted in wood
Physical Model — Whole Community

Disaster Response

Raised 31 feet above the surrounding rooftops, the platform sits clear of the highest recorded flood level and can hold hundreds of residents during an emergency. In the minutes after an earthquake it functions as an elevated refuge above the reach of a tsunami; in the weeks after, it becomes a staging ground for the trucks, cranes, and volunteers rebuilding below. Higher ground to the north and lower ground to the south are connected by ramps, so the platform stays reachable from the station in every scenario.

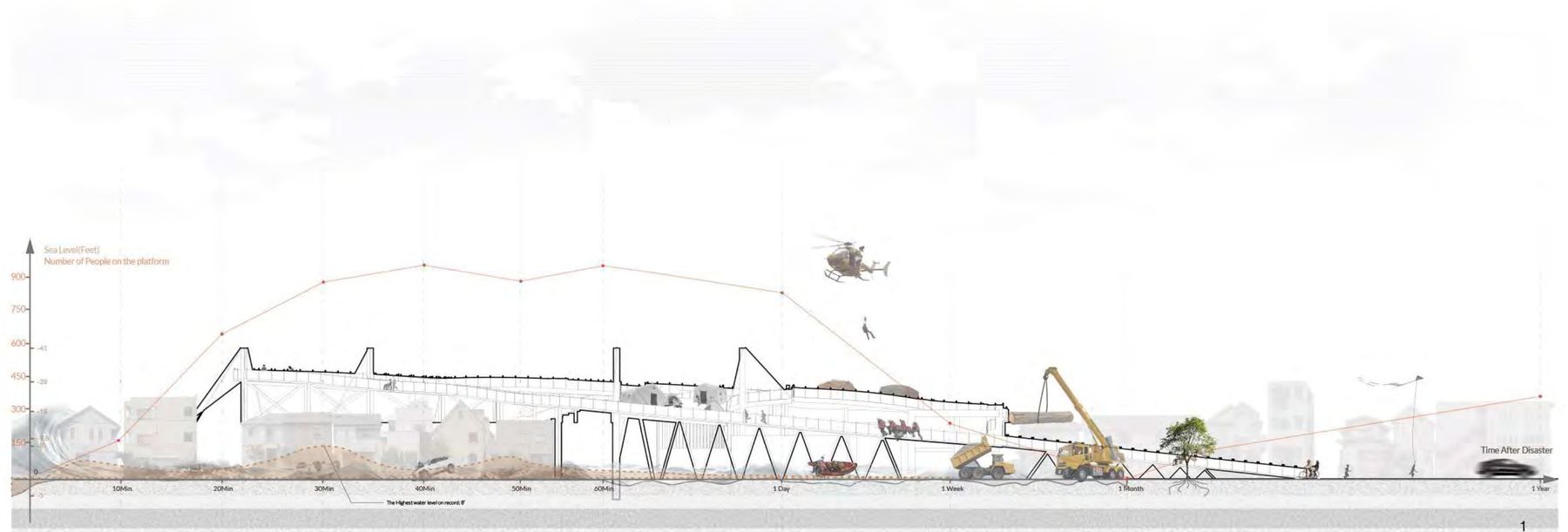

Diagram tracking sea level and the number of people on the platform from 10 minutes after a disaster to one year later
Timeline After a Disaster, 10 Min – 1 Year

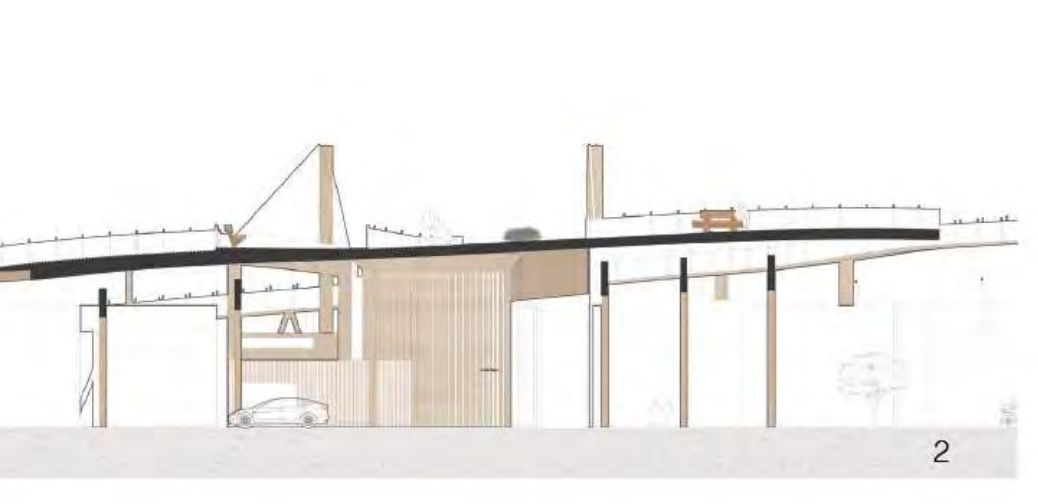

Section drawing of the platform showing its relationship to the community buildings below
Section — Platform Over Community

Structure

Structurally, the platform is built entirely from wood, using three connected systems: bundled columns joined by mortise-and-tenon joinery to distribute seismic loads with ductility rather than rigidity; V-shaped cable supports that minimize the structural footprint at grade, keeping the street clear below; and a suspension-bridge-inspired cable span for the long, column-free reaches between lots. Together they let the platform adapt to the site's unstable, liquefaction-prone ground instead of resisting it.

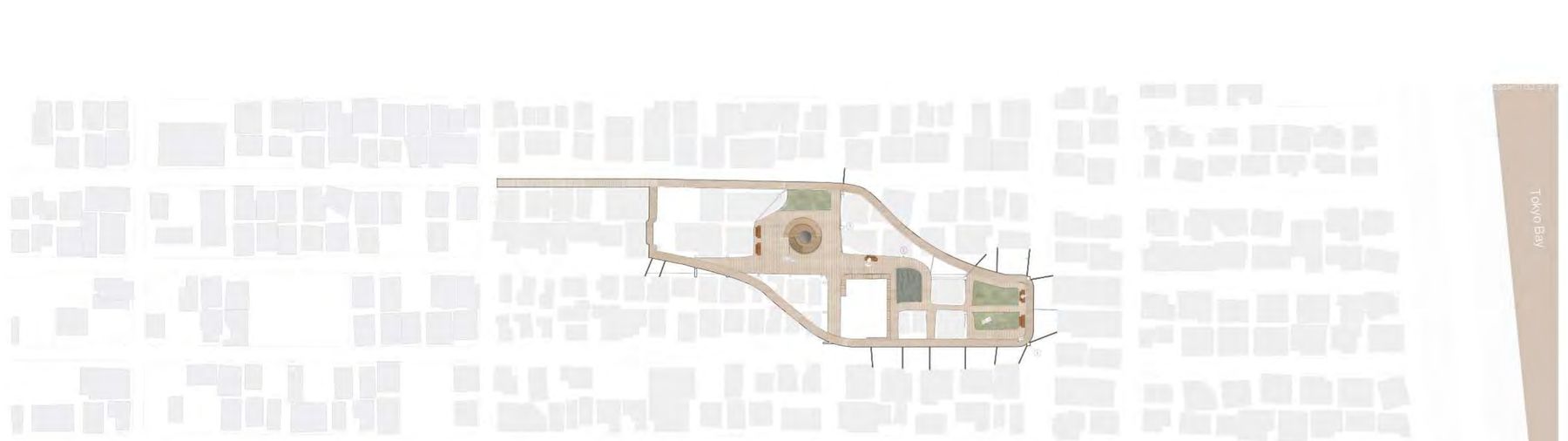

Plan of the elevated platform showing its winding path, garden pockets, and central skylight
Platform Plan

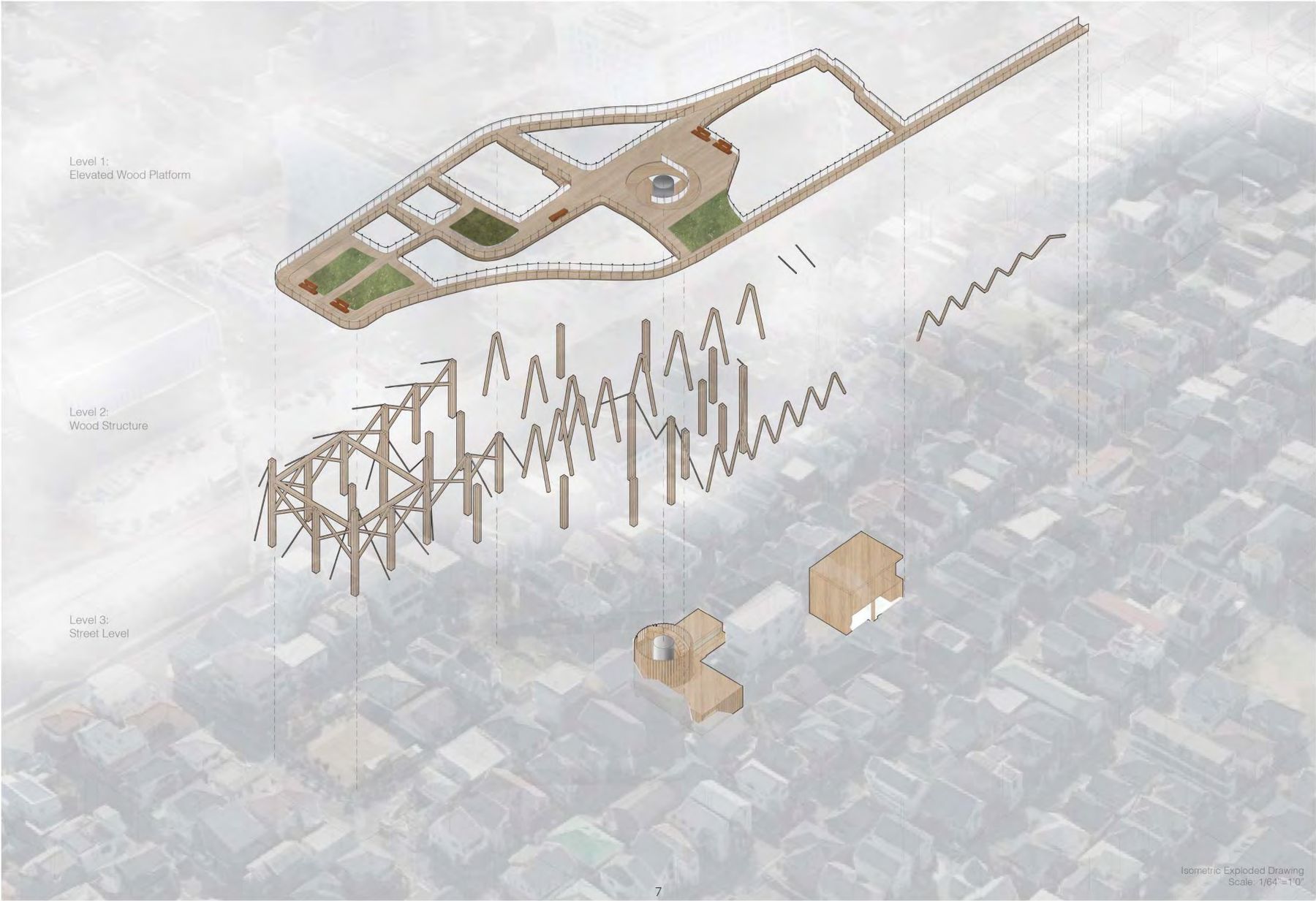

Isometric exploded drawing showing the elevated wood platform, wood structure, and street level
Isometric Exploded Drawing — Three Levels

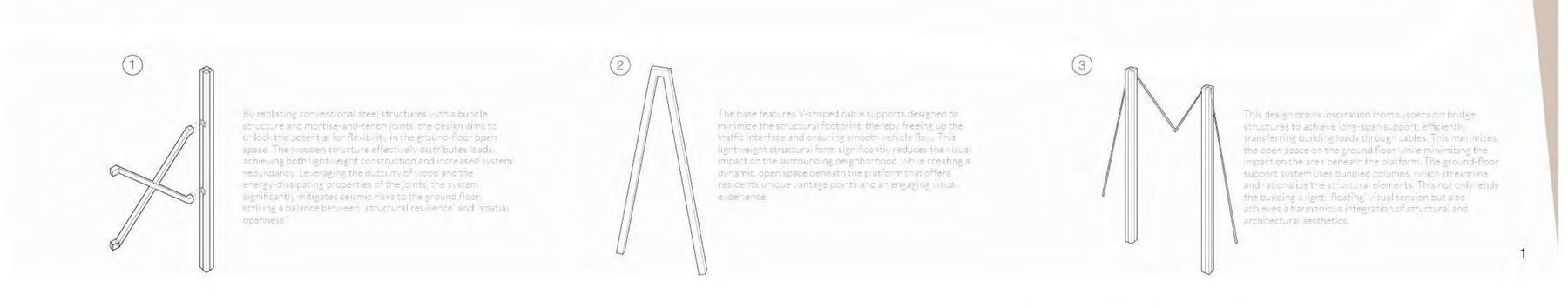

Three structural joint studies: bundled column with mortise-and-tenon joints, V-shaped cable support, and suspension-bridge-inspired M-shaped column
Structural Joint Studies

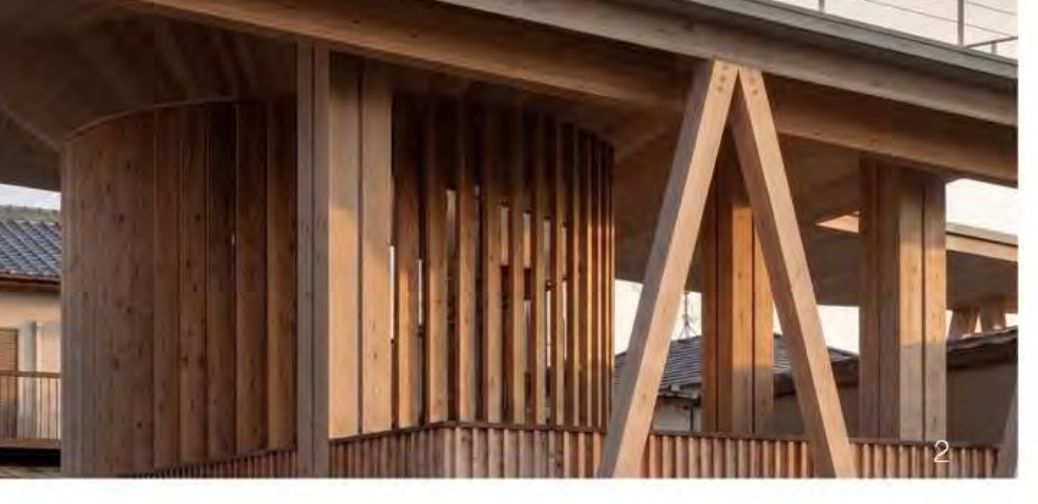

Close-up rendering of the timber V-columns and curved balcony where the platform meets an existing house
Structure Detail, Rendered

Experience

The platform offers residents a new vista over Tokyo Bay, quietly becoming a place to slow down and take in the everyday. Below, the neighborhood's existing functional spaces are preserved and reactivated — visual and auditory connections woven through the structure knit the whole community into one continuous, symbiotic space that keeps working for residents long after the platform's emergency role ends.

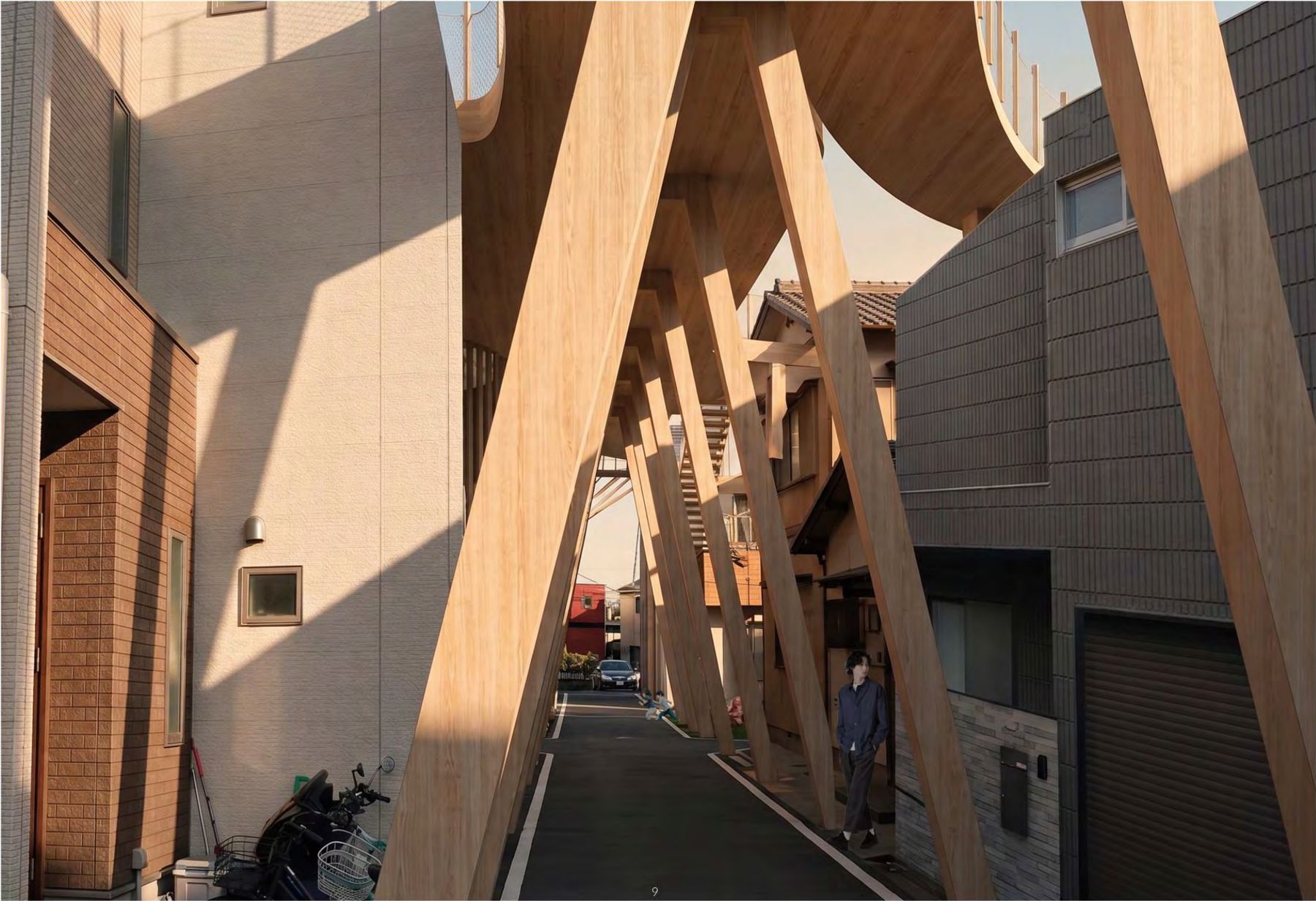

View through the timber V-column structure at street level, between existing houses
Street Level, Beneath the Elevated Platform
← Back to All Work

Adaptive Reuse / Historic Terra-Cotta / Student Housing

PROJECT 02 / 05

The Y Atrium

202–208 S State St, Chicago, IL · Studio Project, 2025

Interior rendering of the funnel-shaped atrium gallery at The Y Atrium, with woven textile works hung on curved plaster walls Rendering — Atrium Gallery

The Y Atrium adapts The Century Building — a 1915 steel-framed, terra-cotta-clad landmark on State Street — into student housing for the School of the Art Institute of Chicago, pairing it with a new addition next door. A funnel-shaped atrium threads both buildings together, drawing daylight down to a courtyard the surrounding block had never had.

Site202 & 208 S State St
Existing Building1915, Steel Frame + Terra-Cotta
ProgramTwo Buildings, Up to 16 Stories
AtriumFunnel-Shaped, Roof to Ground
Room TypesSingle / Double / Triple / ADA
StatusStudio Project, SAIC, 2025

Site

The project centers on The Century Building — a steel-framed Chicago landmark from 1915, faced in white glazed terra cotta — one block from SAIC's campus and its existing dorms. The design strategy keeps that historical character intact while adding what the building never had: space built for how students actually live today.

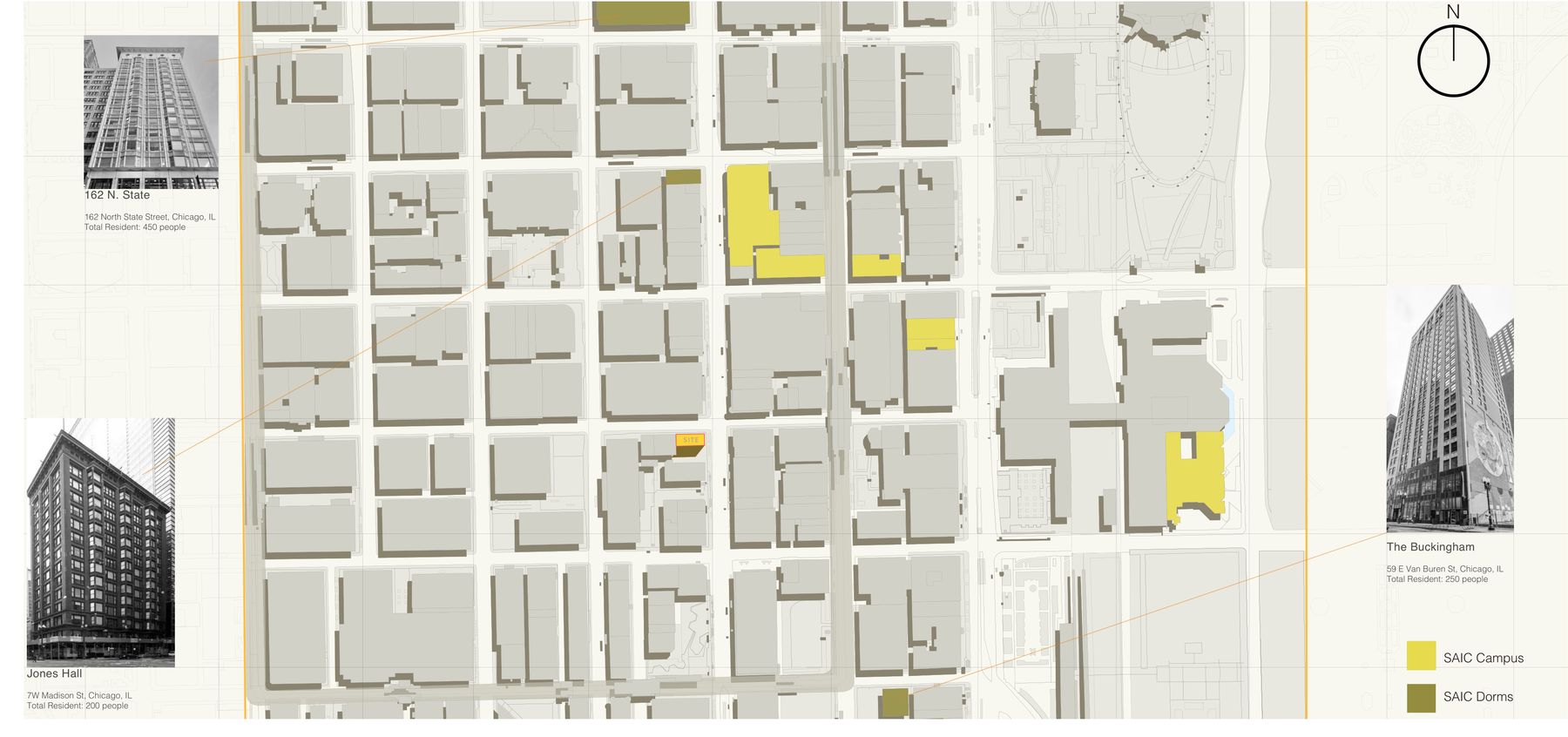

Site map of the SAIC campus with photos of 162 N. State, Jones Hall, and The Buckingham dorm, and the Century Building site highlighted
Site Map, SAIC Campus

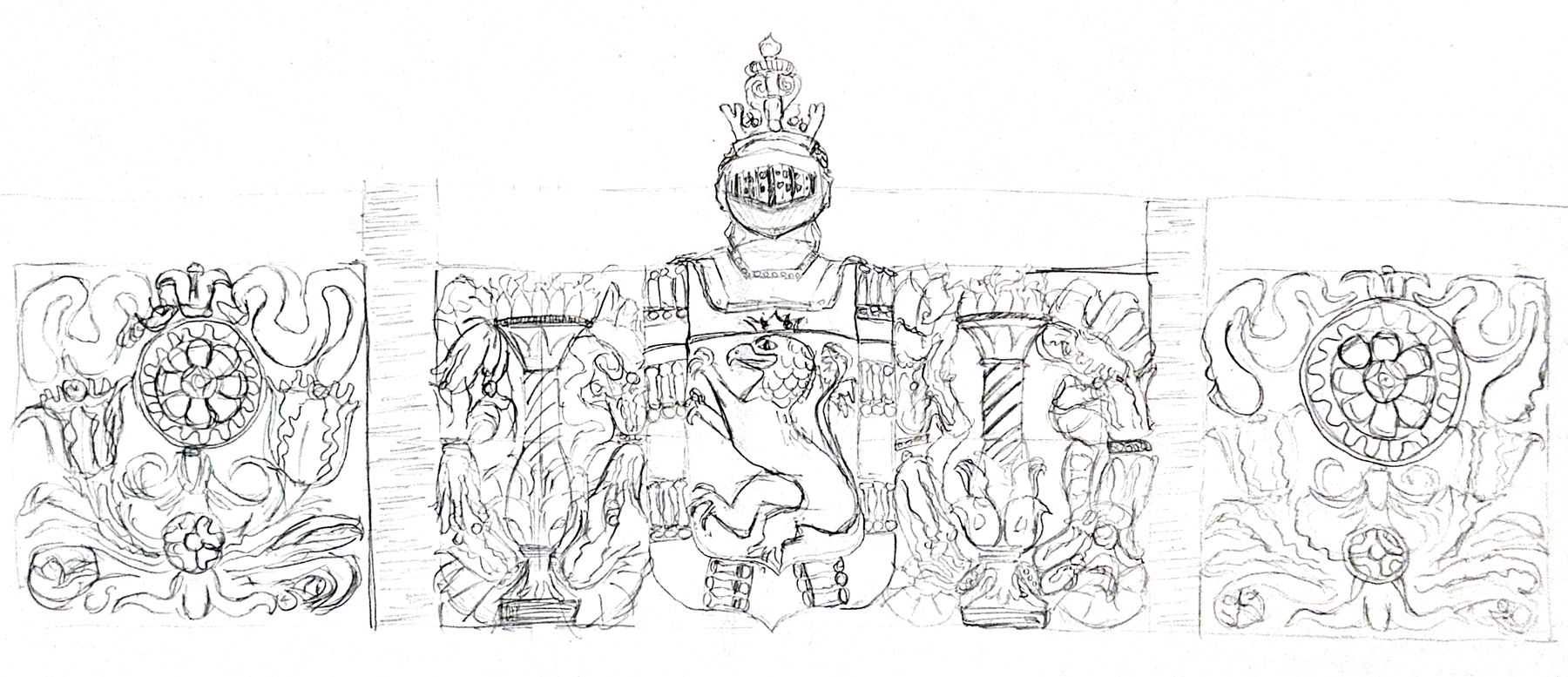

Hand pencil sketch studying the ornamental terra-cotta facade detail of the Century Building
Sketch — Terra-Cotta Facade Detail

Concept

Because the building is boxed in by taller neighbors, its core suffers from insufficient natural light. A central atrium is cut through the structure, with openings sized to draw daylight through every floor — enough for the building to feel lit from the inside out, and for it to work as a place students actually want to live.

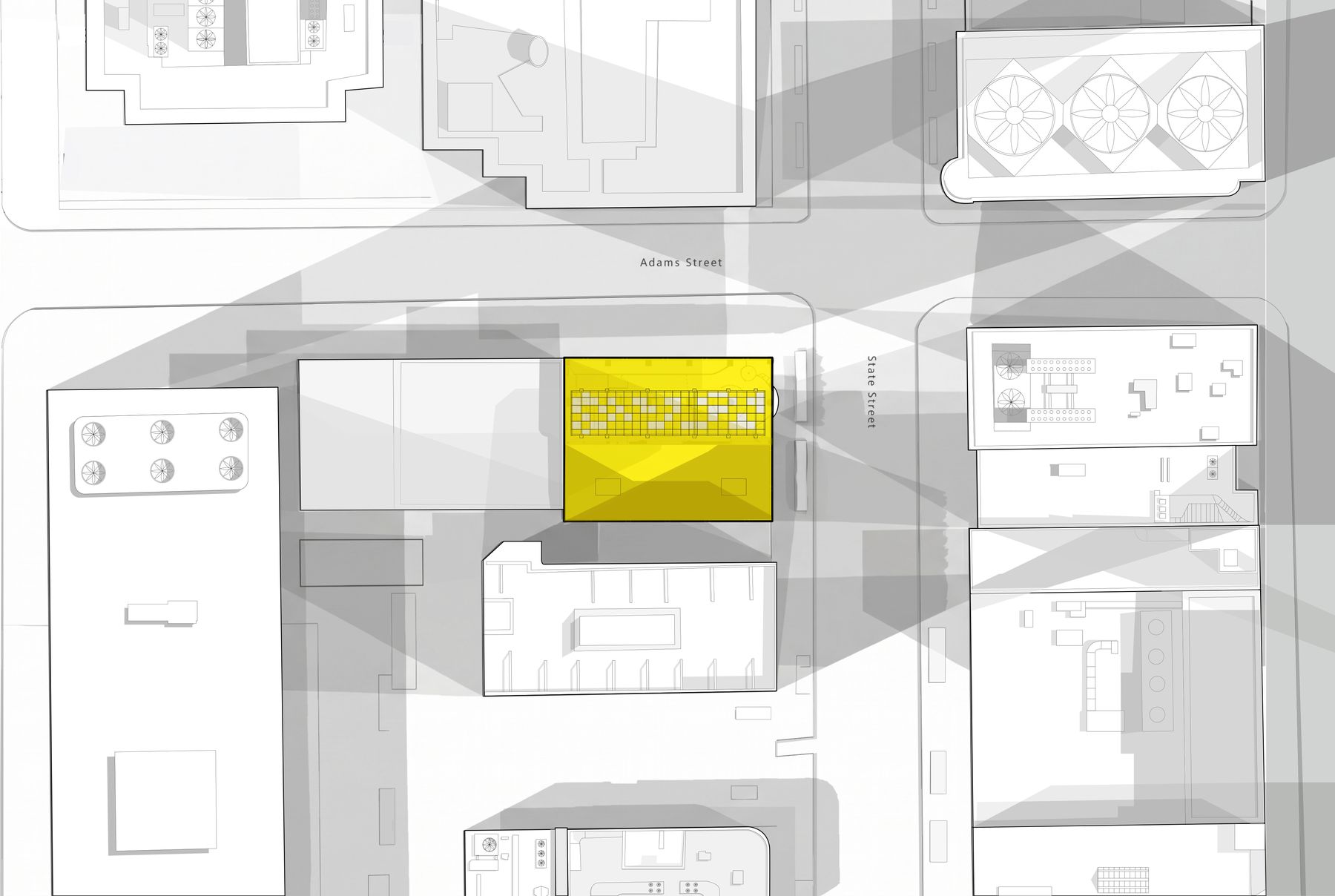

Sun and shadow analysis diagram showing daylight reaching the atrium opening on the roof
Sun & Shadow Analysis

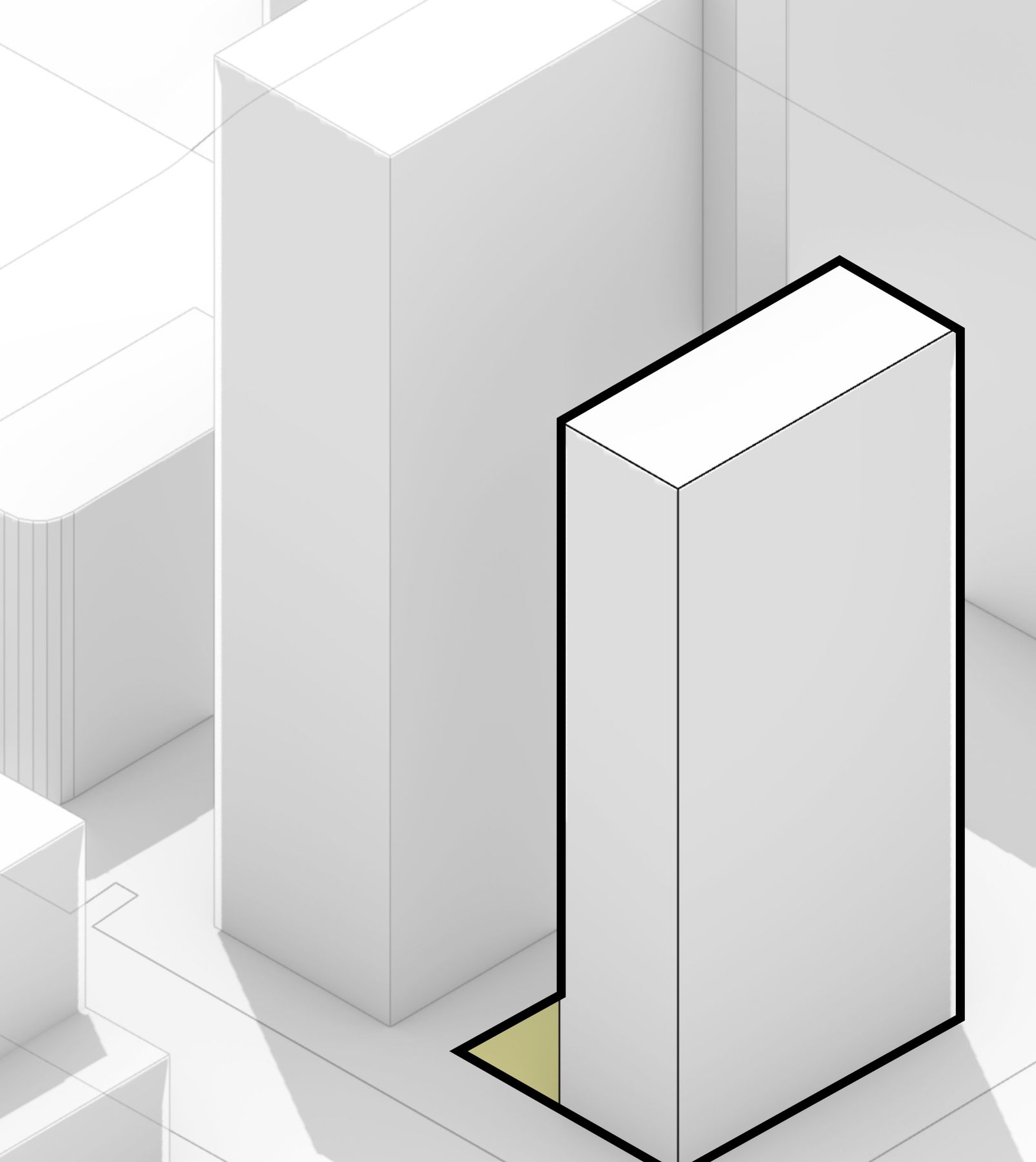

Massing step a: the existing building volume outlined against its neighbors
a — Existing Volume

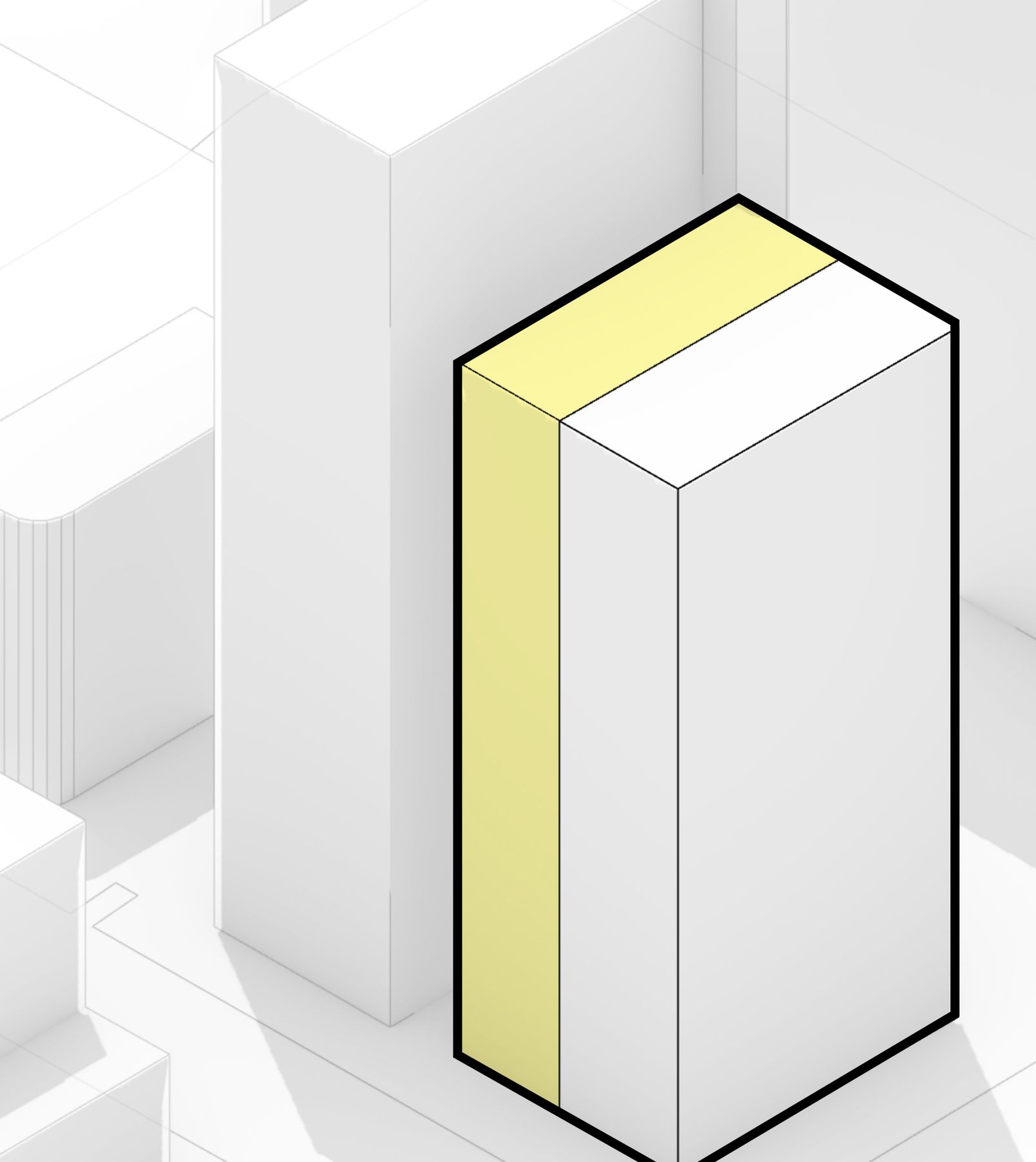

Massing step b: a strip along the building's edge marked for the new atrium opening
b — Atrium Edge Marked

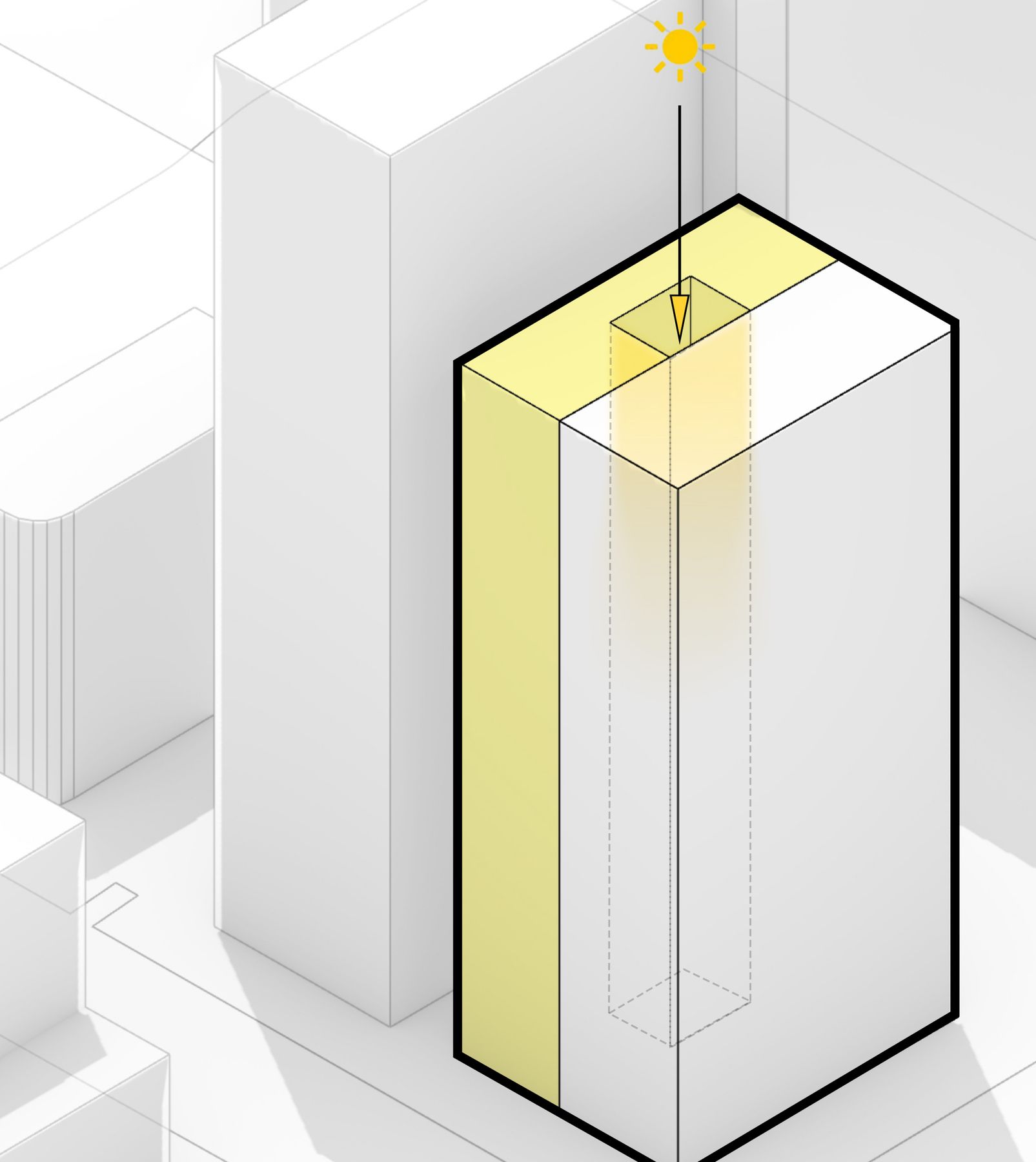

Massing step c: a shaft cut through the roof and down through the building, with sunlight entering
c — Shaft Cut Through

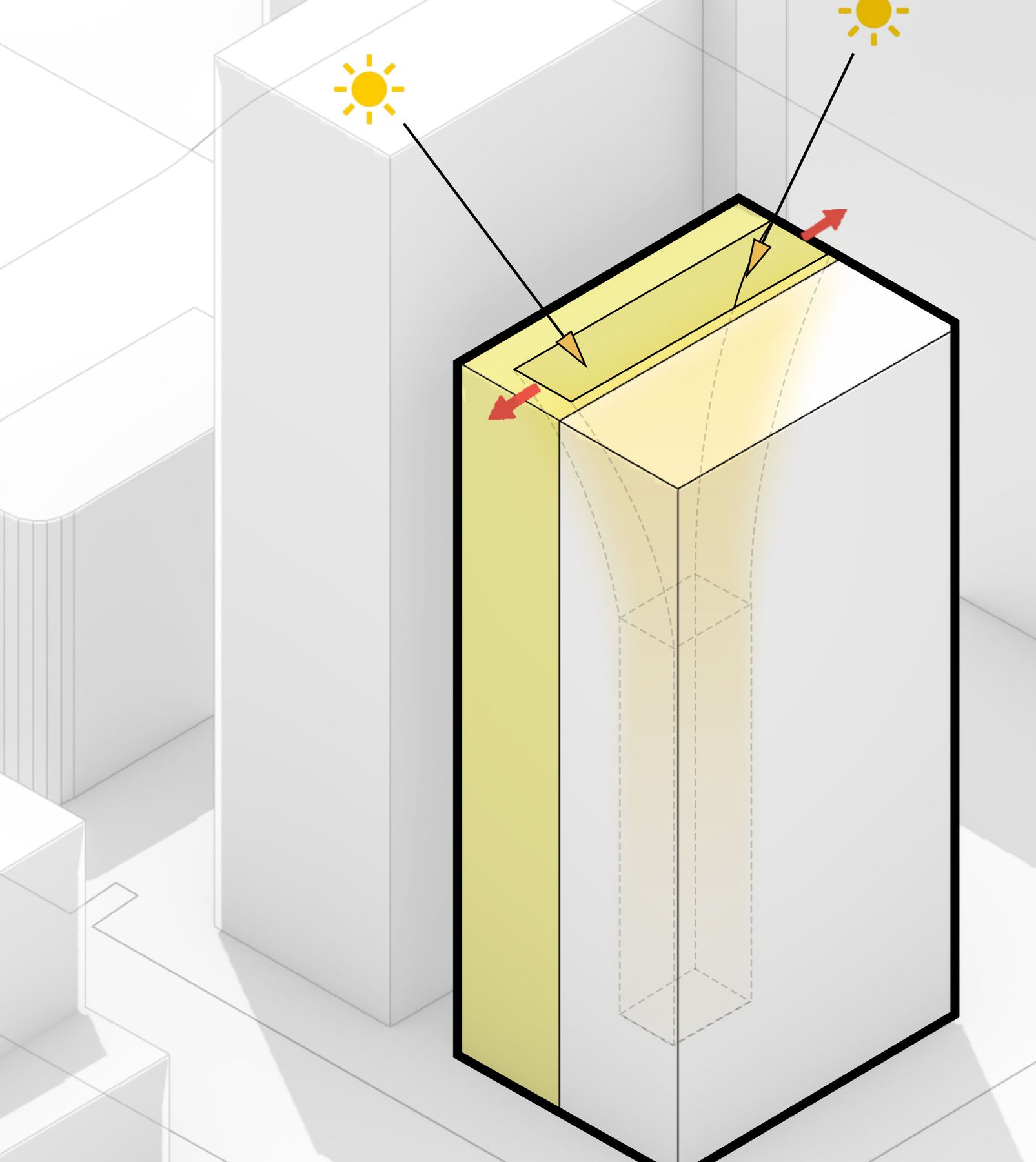

Massing step d: the roof opening widened and flared to draw in more daylight
d — Opening Widened

Structure & Program

The building reads as two volumes working together: the existing structure holds most of the living space, while the new volume to the south concentrates the building's core and the atrium itself, reinforcing the old building both functionally and structurally. A funnel-shaped glass atrium runs the full height of the building, from the 16th-floor gym down to the ground-floor gallery and lobby.

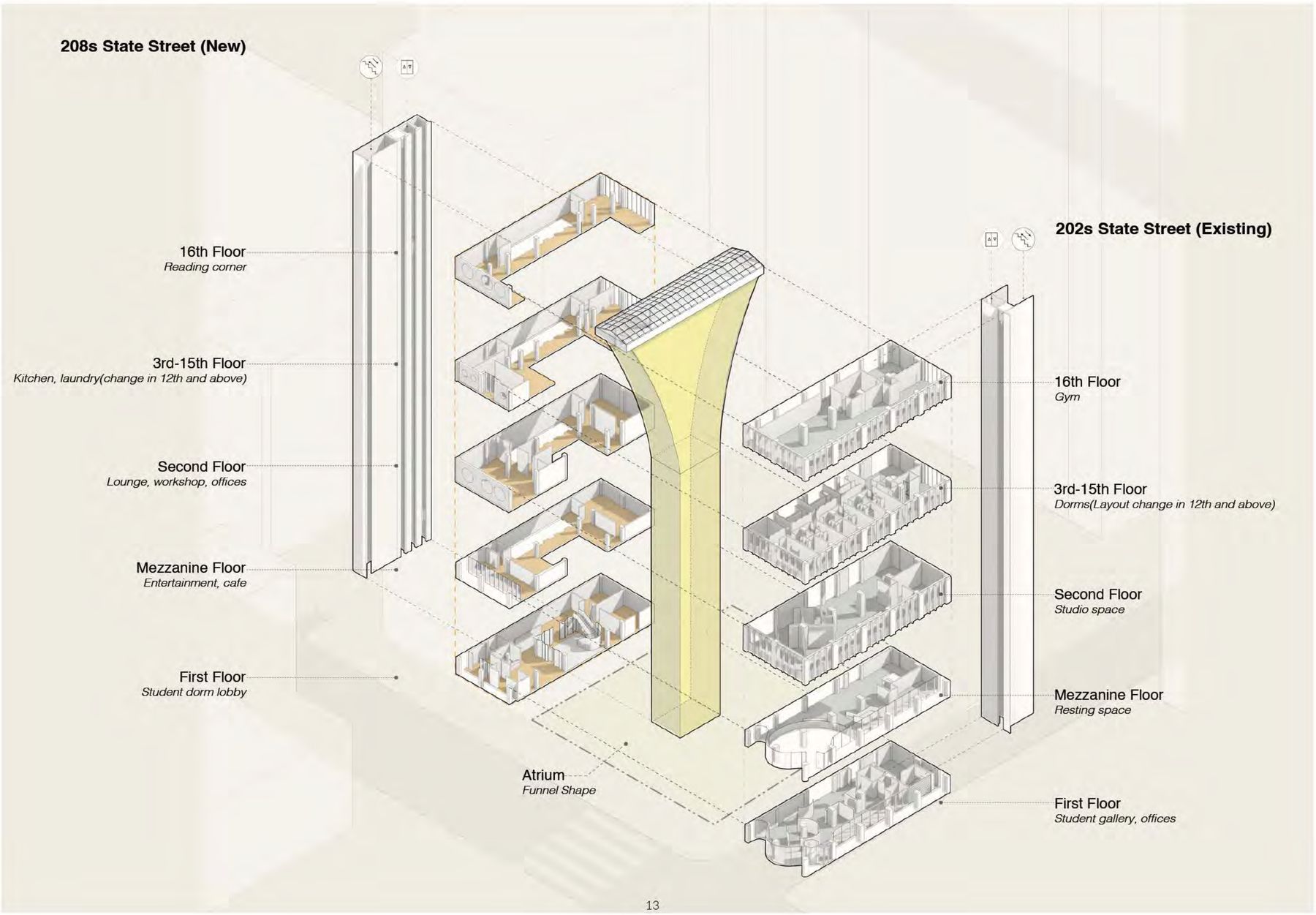

Exploded axonometric diagram of the program across both buildings, connected by the funnel-shaped atrium
Exploded Axonometric — Program & Atrium

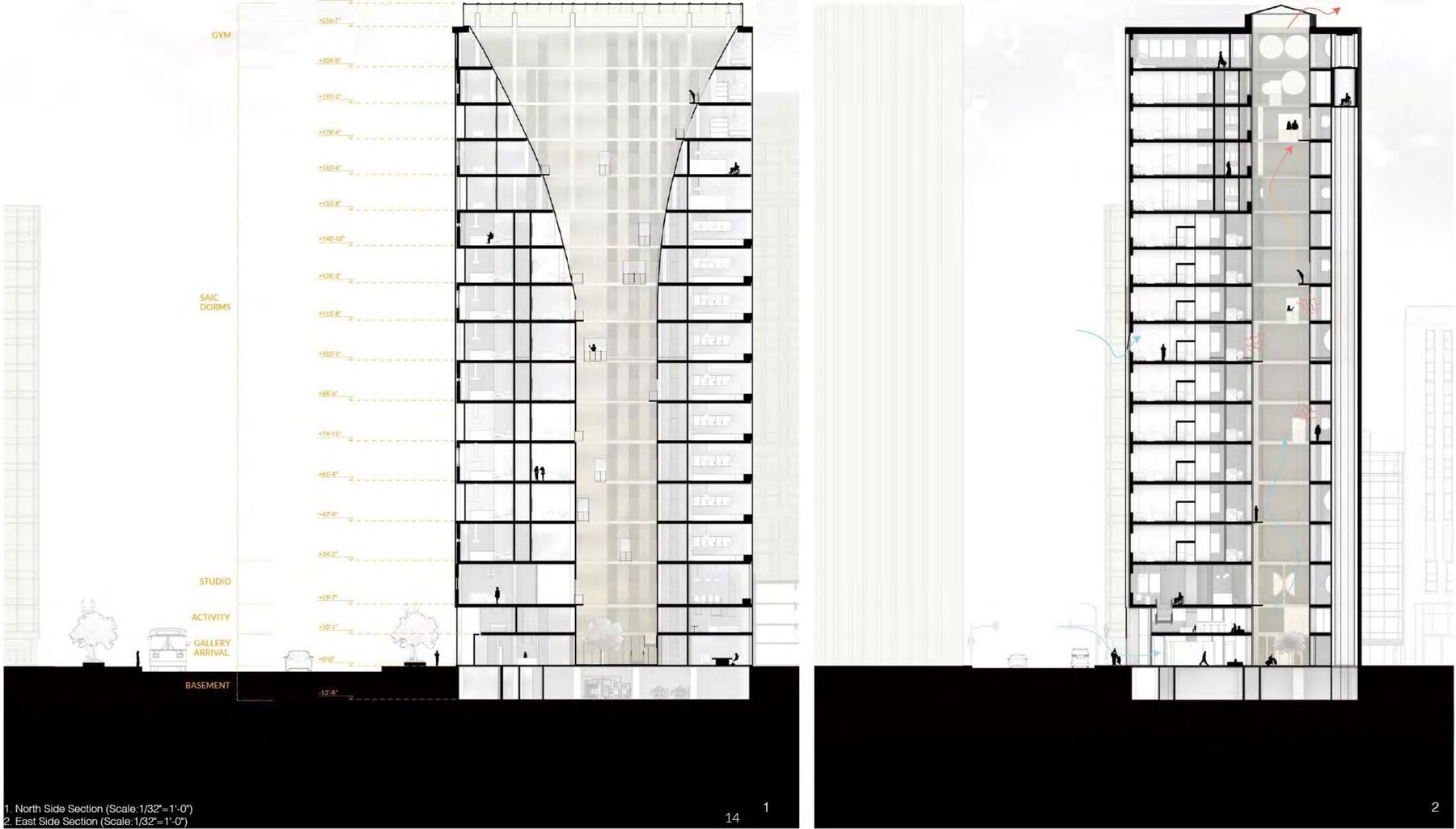

North and east building sections showing the atrium, dorm floors, and ground-floor program
North & East Sections

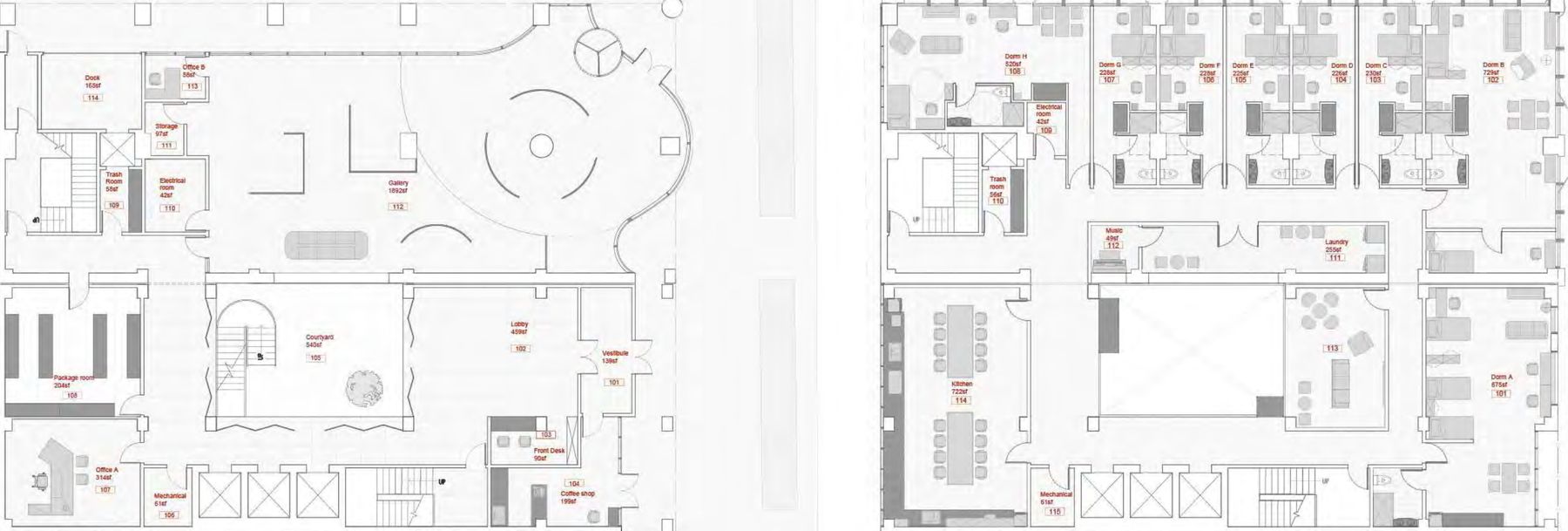

Ground floor and typical residential floor plans
Ground & Typical Floor Plans

Experience

Rendering of the entry lobby looking into the atrium courtyard, with exposed brick and a folded wood stair

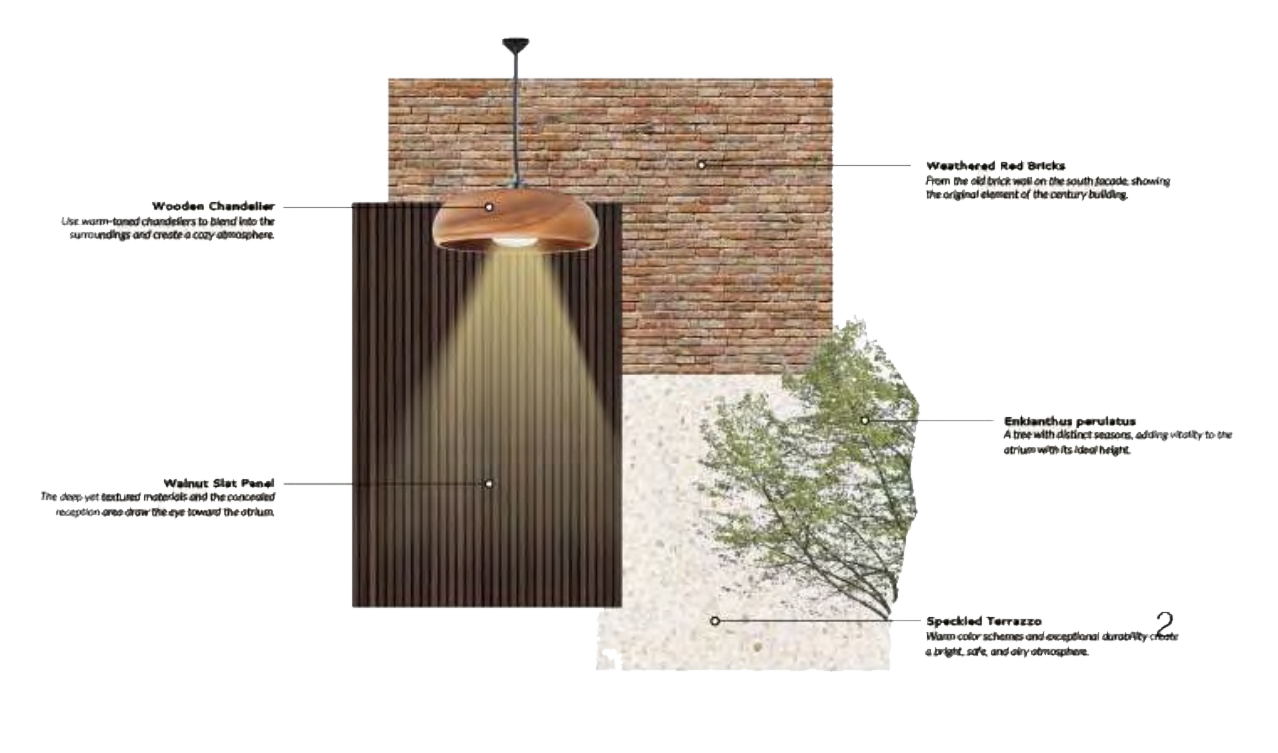

Materials Material board for the lobby: weathered red brick, walnut slat panel, wooden chandelier, speckled terrazzo
Lobby Perspective, Looking into Atrium

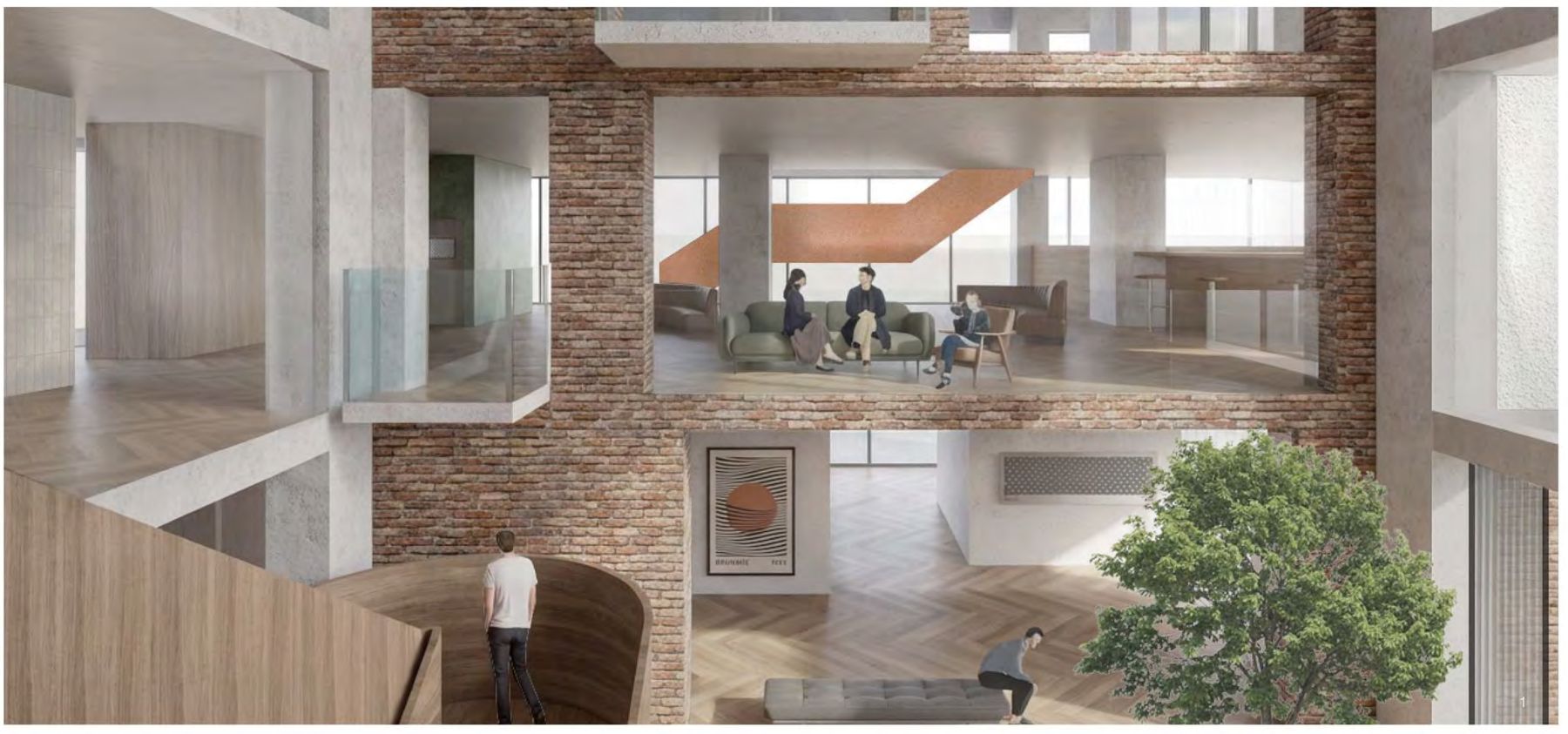

Rendering of an upper-floor atrium lounge with brick walls and hanging textile artwork
Materials Material board for the atrium lounge: white oak panel, linen-blend herringbone sofa, leather plank chair, orange terra-cotta tile
Atrium Lounge Perspective
Rendering of a triple dormitory room looking out toward the atrium, with a kitchenette in the foreground

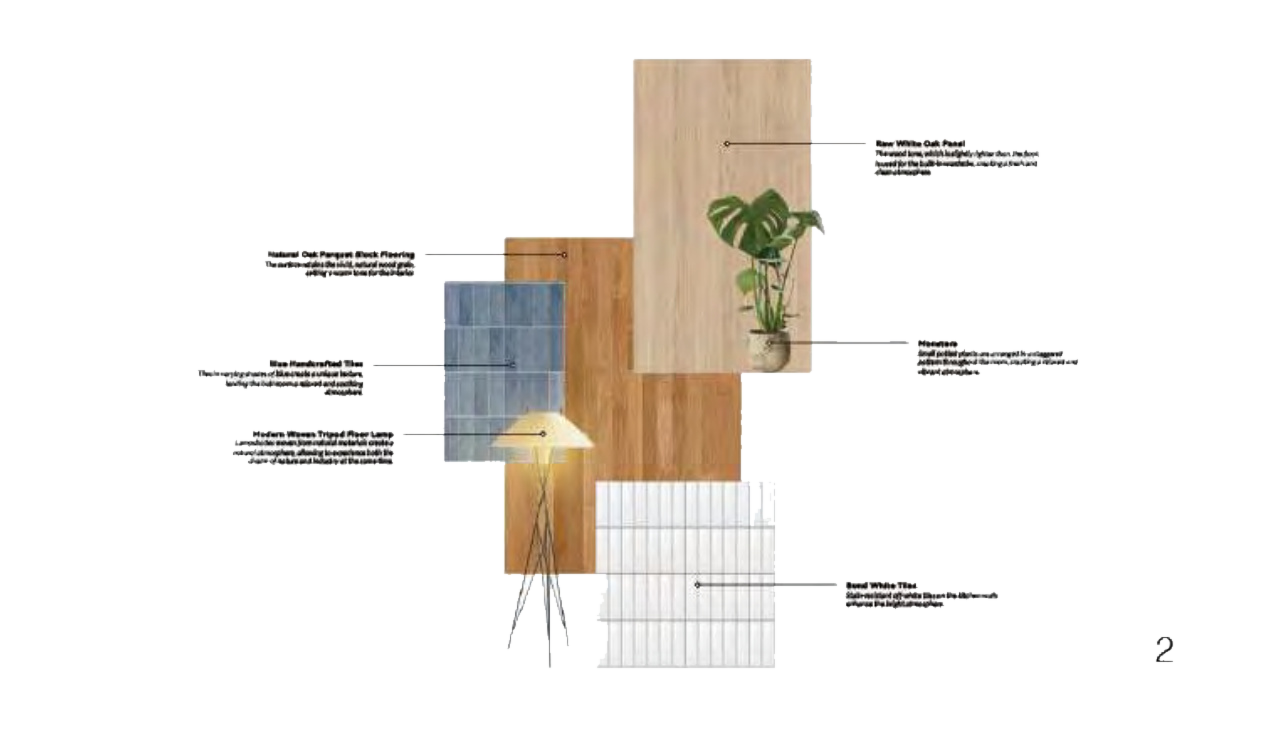

Materials Material board for the dorm room: raw white oak panel, natural oak parquet flooring, blue handcrafted tile, bond white tile
Triple Dorm Perspective

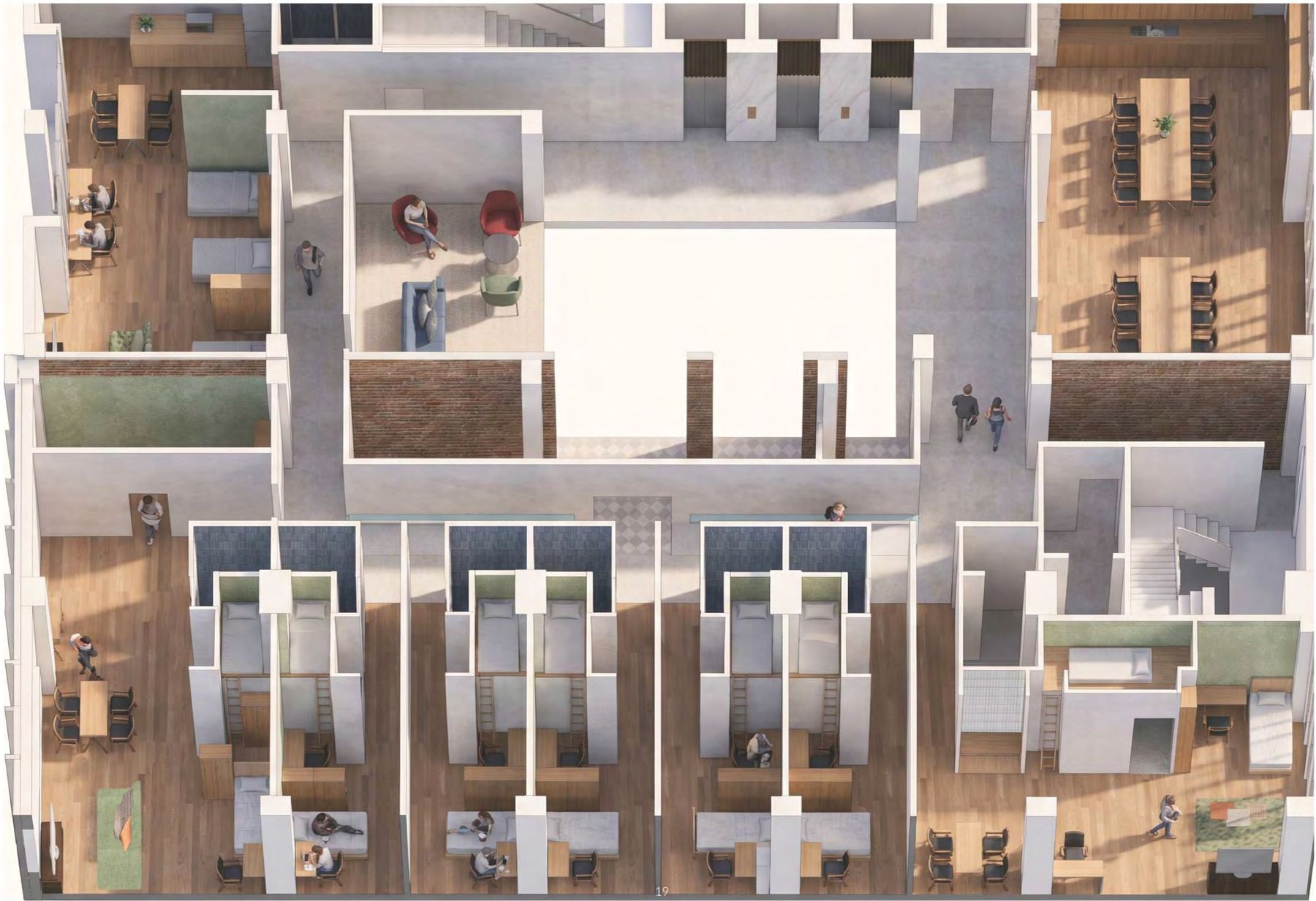

Cutaway isometric rendering of a full residential floor showing lounges, dorm rooms, and shared kitchens
Cutaway Isometric — Residential Floor
Night exterior rendering of the restored terra-cotta facade in the rain, with a lit gallery at street level

Exterior at Night, State Street

← Back to All Work

Interior Design / Biophilic Workplace / Adaptive Reuse

PROJECT 03 / 05

Northerly Green

Northerly Island, Chicago, IL · Studio Project, 2025

Exterior rendering of the renovated former Meigs Field terminal, with a glazed archway entrance and green roof Rendering — Exterior, Northerly Island

Northerly Green reimagines the former Meigs Field Airport terminal (1948–2003) on Chicago's Northerly Island as a biophilic workplace, opening the building inward around a light-filled atrium where greenery — once absent from a place defined by movement and departure — threads work and rest together.

SiteNortherly Island, Chicago
Existing BuildingFormer Meigs Field Terminal, 1948
ProgramRenovation, Interior Design
ConceptBiophilic Workplace
MaterialsLocally Sourced Illinois Wood & Stone
StatusStudio Project, SAIC, 2025

Site

Located on Northerly Island, between the Field Museum, Soldier Field, and Lake Michigan, the site carries the ecological character of the island's restored prairie and wetland — little bluestem, tussock sedge, great blue herons — right up to the building's edge.

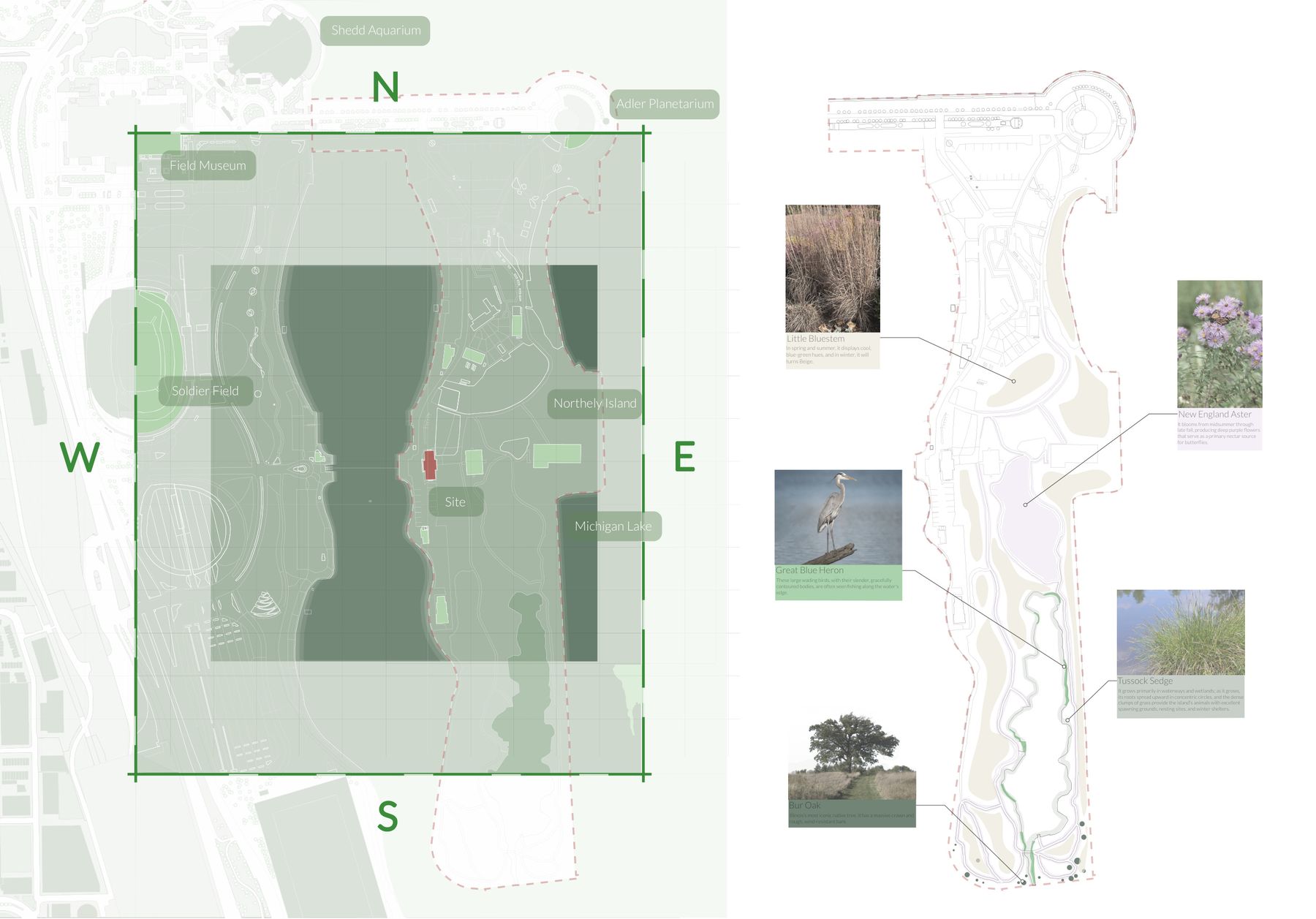

Site plan of Northerly Island with photos and a planting palette of native prairie and wetland species
Site Plan & Native Planting Palette

Concept

Once defined by movement and departure, the building now opens inward — walls dissolve into fluid workspaces around a light-filled atrium, with greenery extending outward to stitch work and rest together. East–west views of Lake Michigan and the skyline frame sun-washed lounges, where the rhythm of daily work slows into quiet moments of calm.

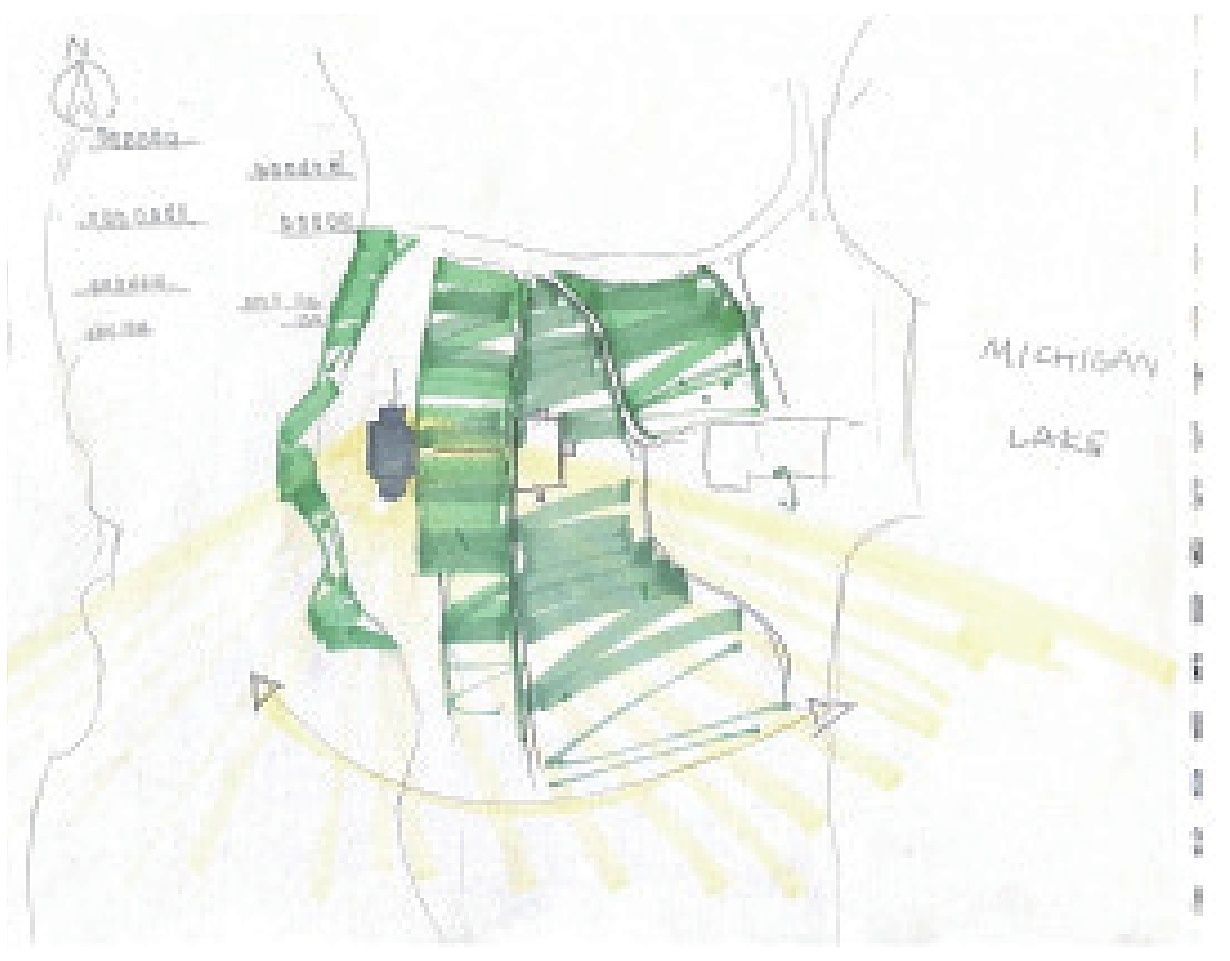

Hand sketch of the atrium's folded green stair and skylight, with sun angles studied toward Michigan Lake
Sketch — Atrium & Sun Study, Toward the Lake

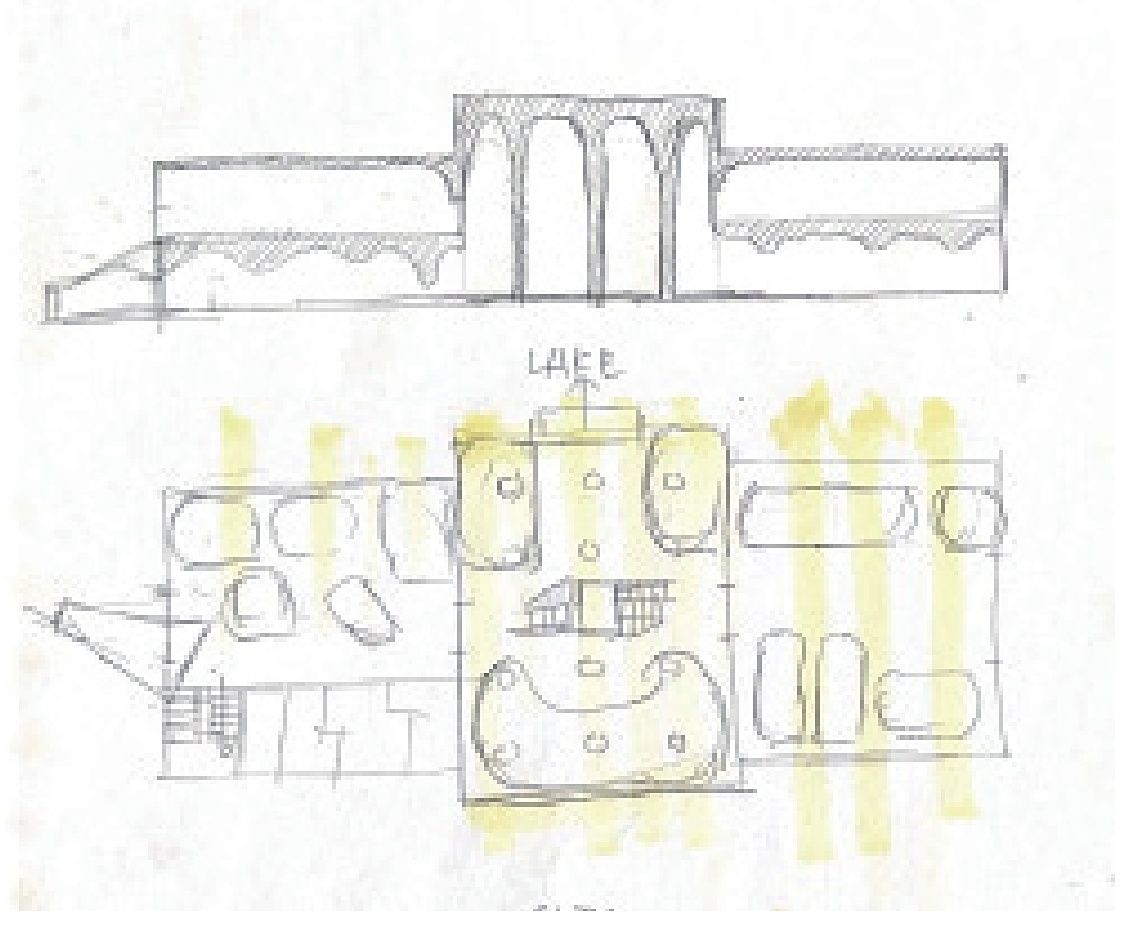

Hand sketch of a building section with arched skylight monitor, and a plan diagram marking sun-washed lounge zones
Sketch — Section & Sun-Washed Plan

Analysis

Native plants are brought indoors and woven into the landscape, blurring the line between interior and exterior. With planting as the organizing theme, a handful of techniques — as a wall, on the floor, around a column, as a roof — let greenery both divide and connect spaces, growing continuously through the building.

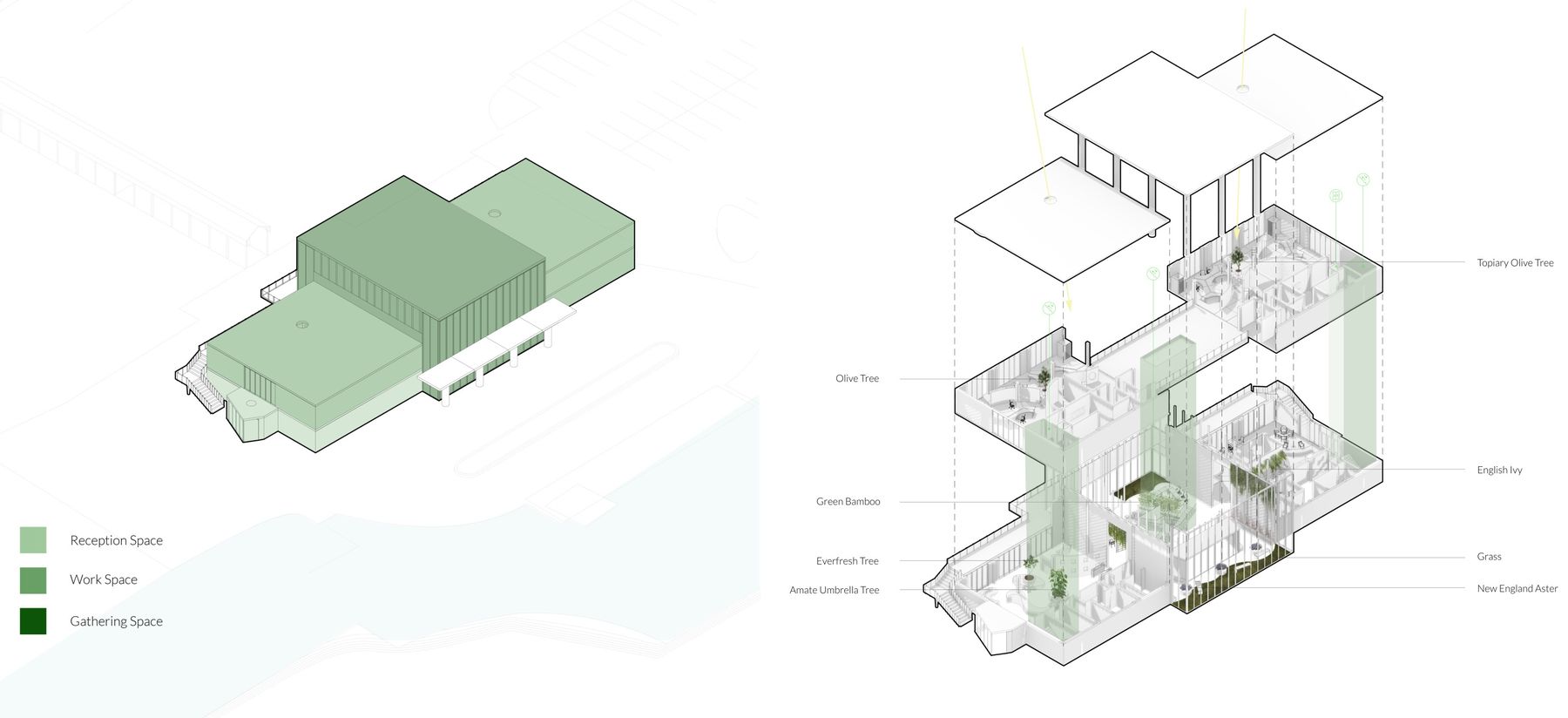

Massing diagram colored by function — reception, work, and gathering space — alongside an exploded axonometric labeling planting species throughout the building
Volume & Function Analysis

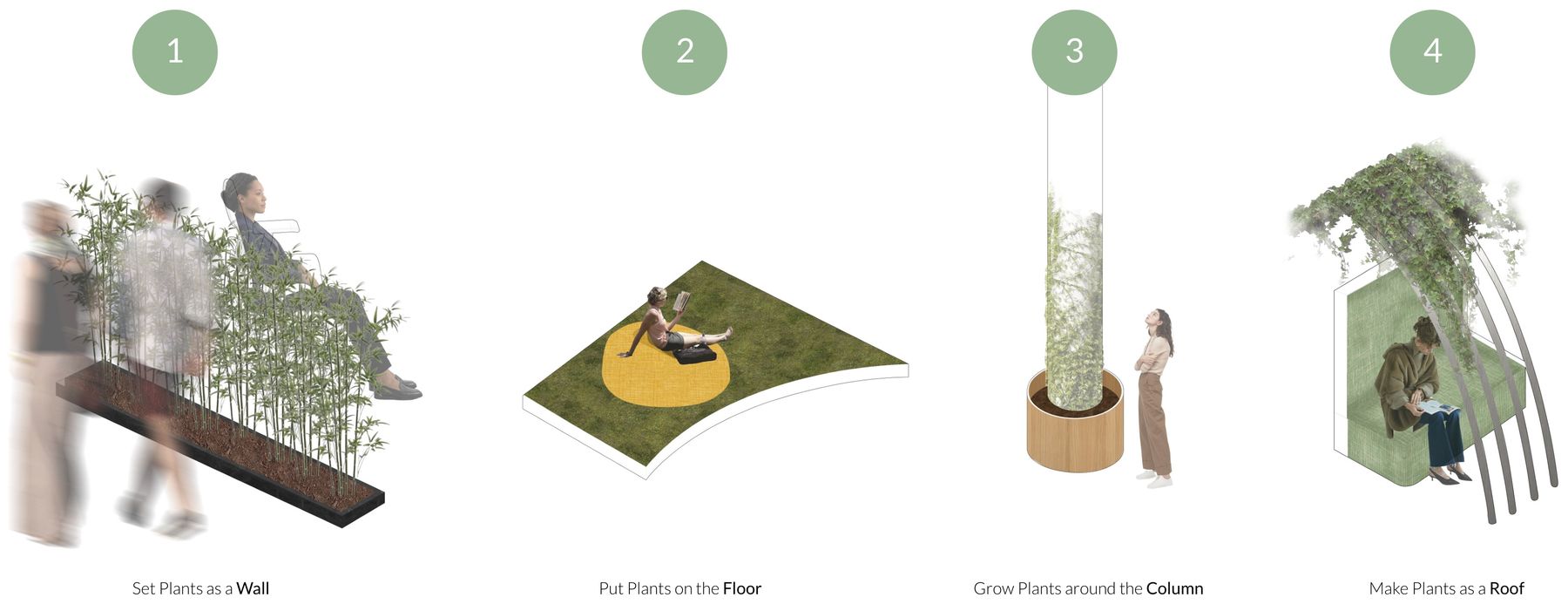

Four design strategy diagrams: plants set as a wall, on the floor, around a column, and as a roof
Design Strategy — Four Planting Techniques

Plan

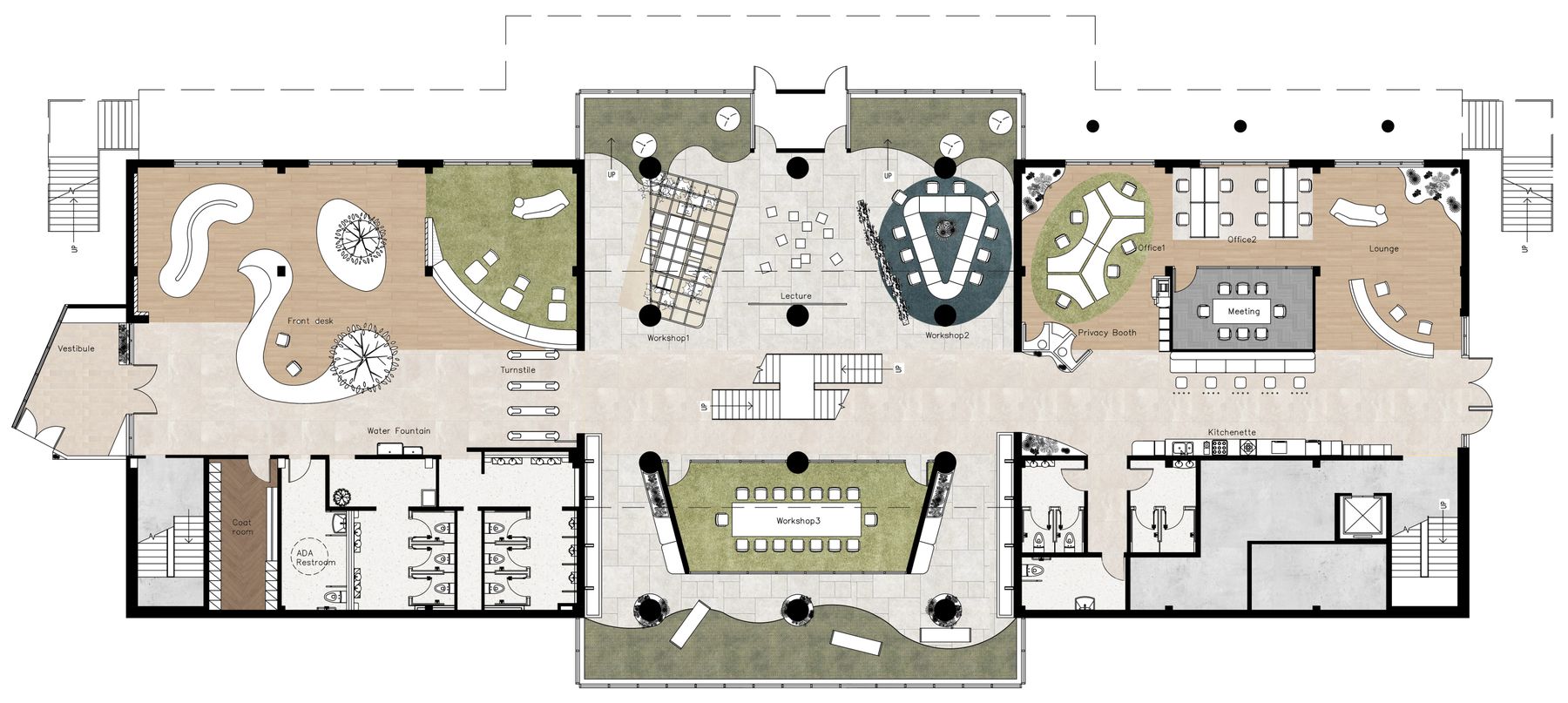

First floor plan showing reception, workshop spaces, meeting room, and offices
First Floor Plan

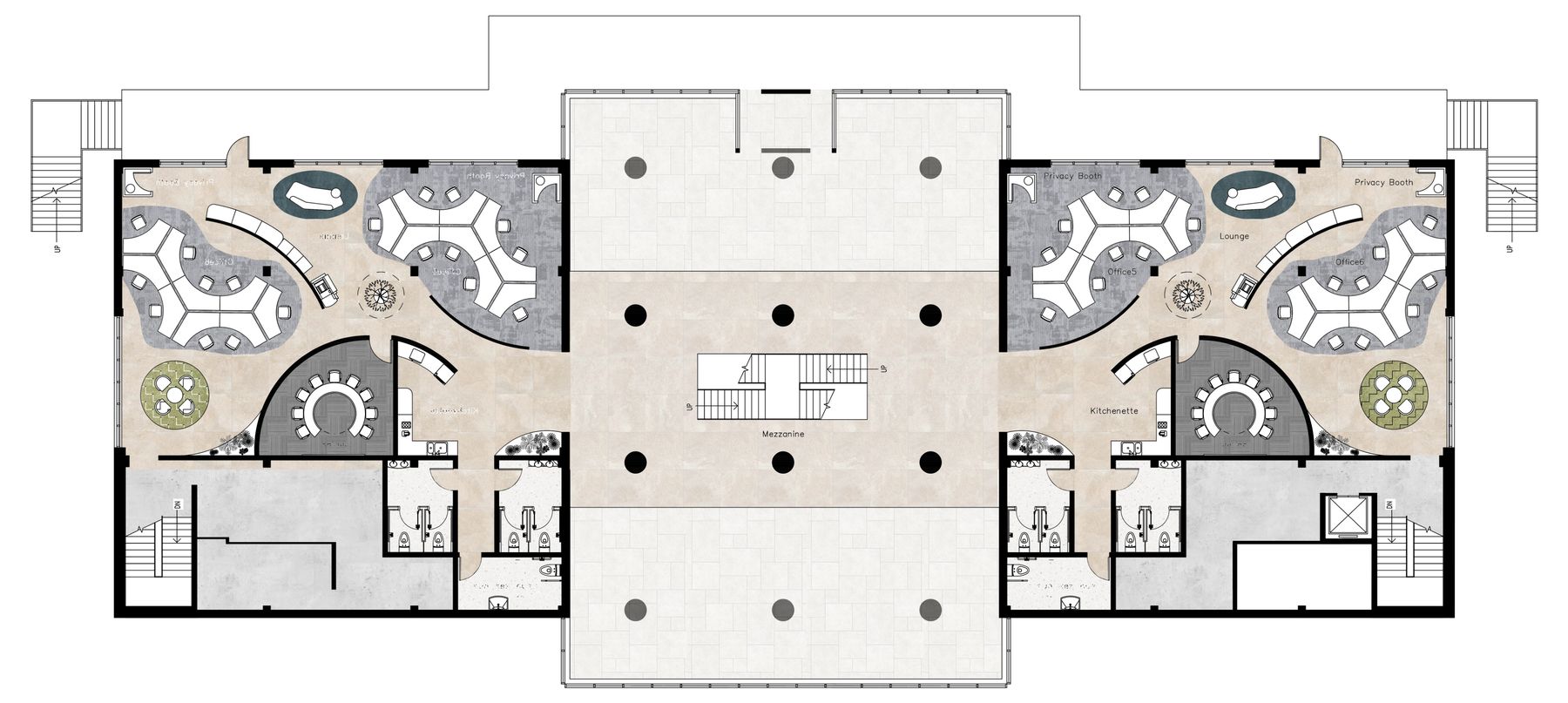

Second floor plan showing mirrored office pods, privacy booths, and a central mezzanine over the atrium
Second Floor Plan

Experience

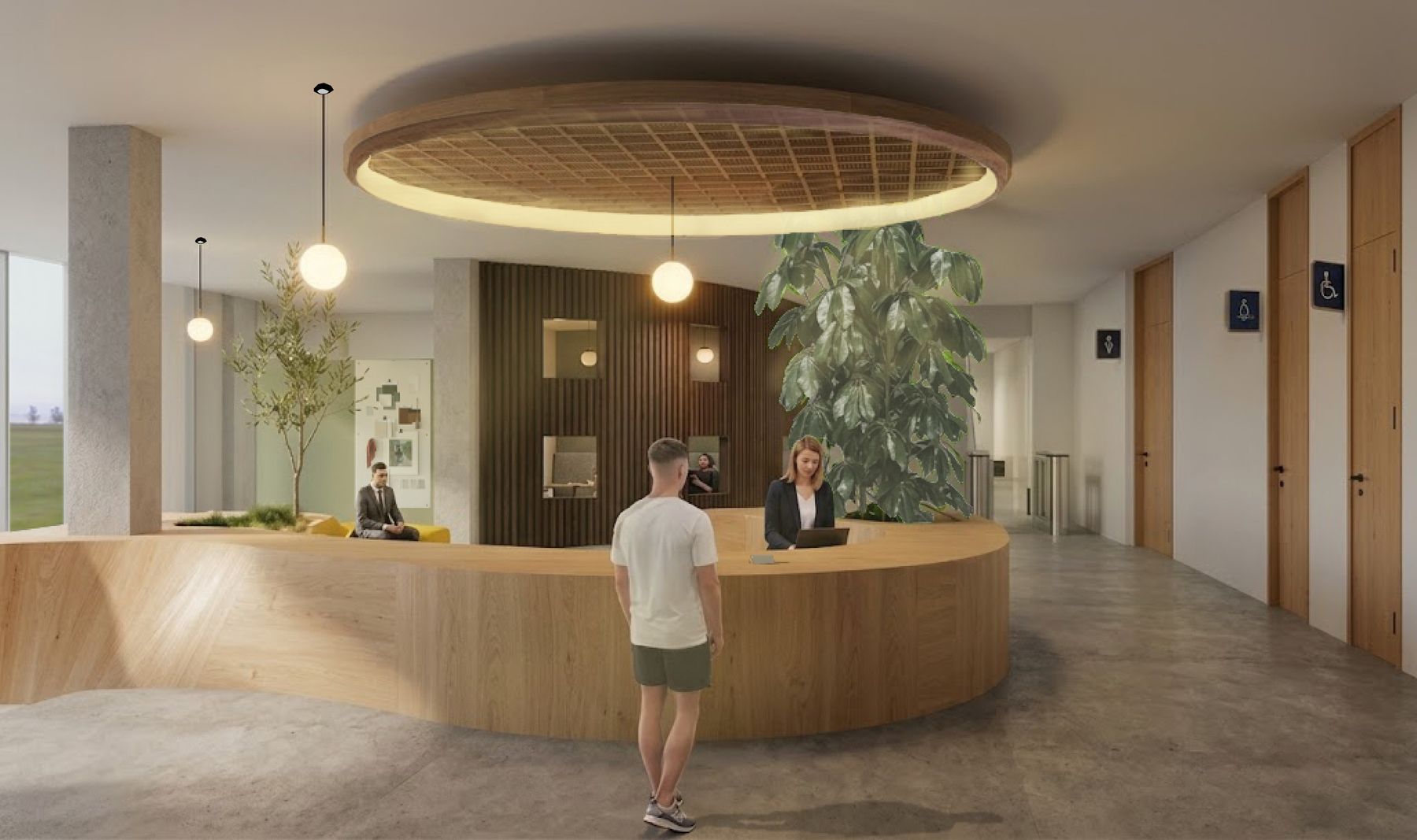

Rendering of the front desk reception area with a circular wood ceiling feature and an olive tree
Front Desk Perspective
Rendering of an office workstation area with lake views, a curved wood partition, and an olive tree
Office Perspective

Material

Materials shift by room: soft green plaster and warm wood line the kitchen and informal work areas, while dark wood slats and a single lacquered orange door mark the meeting rooms — distinct atmospheres built from the same restrained material palette.

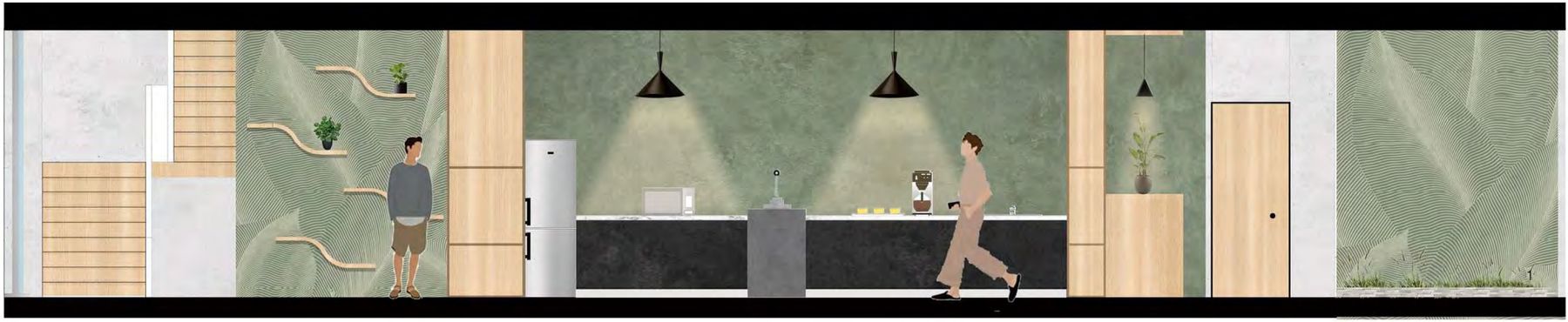

Interior elevation of the office kitchenette with green plaster walls and floating wood shelves
Office & Kitchenette Elevation

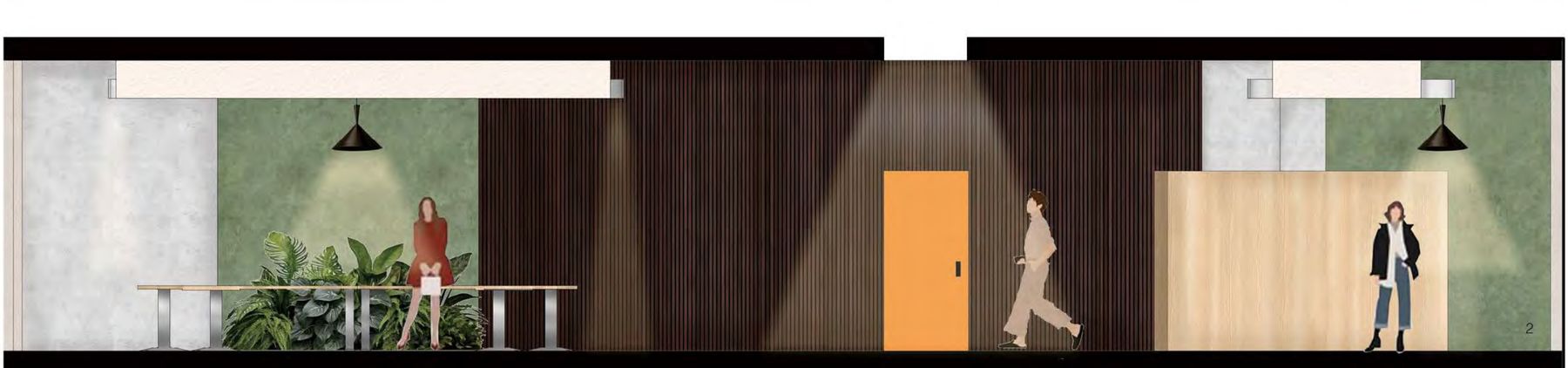

Interior elevation of the meeting room corridor with dark wood slats and a lacquered orange door
Office & Meeting Room Elevation
← Back to All Work

Civic / Educational / Botanic Architecture

PROJECT 04 / 05

Photosynthesis Crystal

328 S Wabash Ave, Chicago, IL · Studio Project, 2024

Exterior rendering of Photosynthesis Crystal, a folded concrete and timber structure with a reflecting pool Rendering — Exterior, The Loop

Photosynthesis Crystal is a year-round botanical education and experience center in Chicago's Loop, organized around light, water, and plants — turning natural processes that are usually hidden into something visitors can watch happen.

Site328 S Wabash Ave, The Loop
ProgramBotanical Education Center
ConceptLight, Water & Plants
StructureFolded Concrete & Timber Roof
FeatureFunneled Skylights + Water Circulation
StatusStudio Project, SAIC, 2024

Site

Sited along the CTA Loop tracks near several schools and pocket parks, the building is conceived as a shared amenity for nearby students, office workers, and residents looking for a moment outdoors, rain or shine.

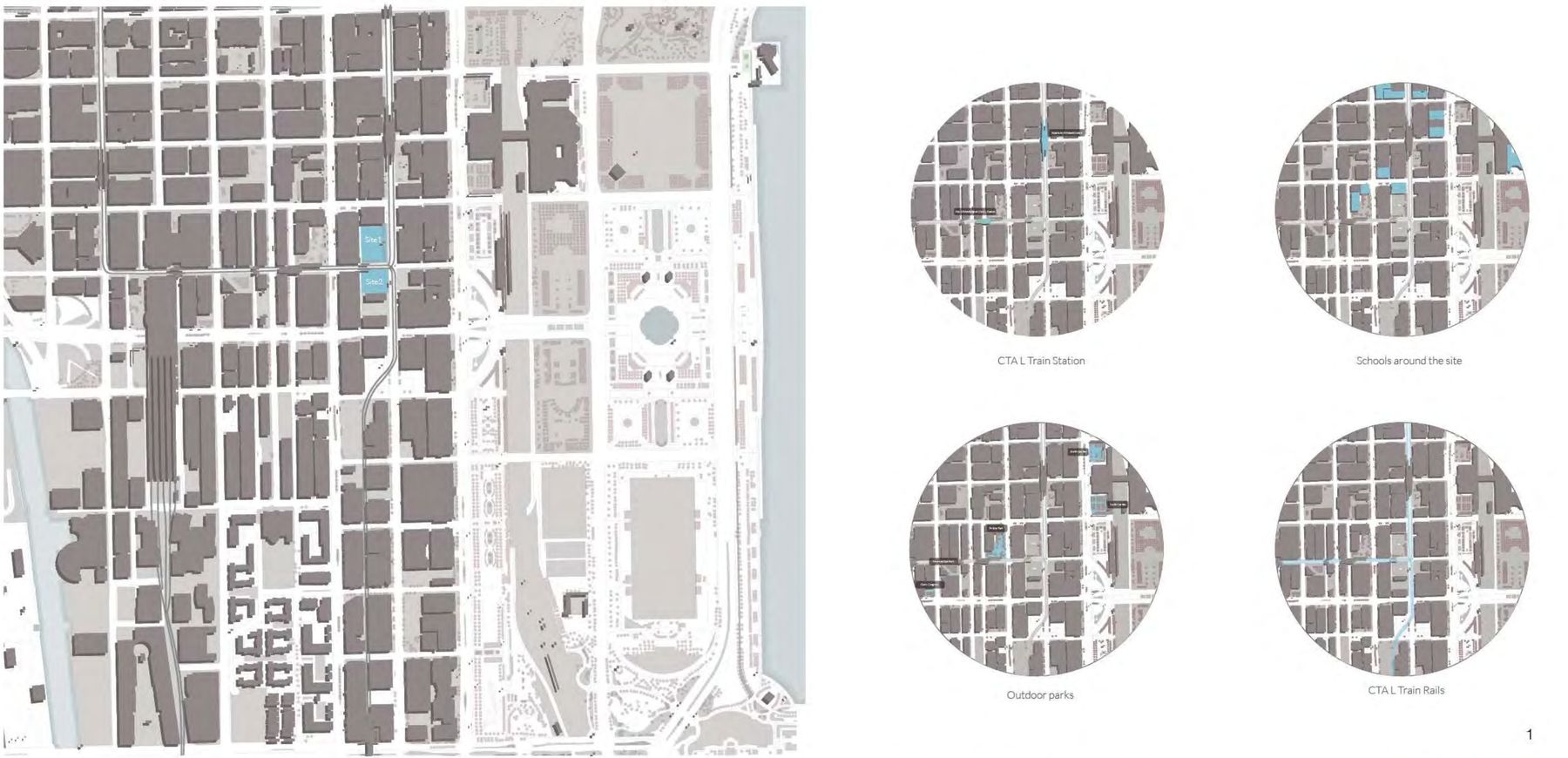

Site analysis diagrams showing the CTA L train station, schools, outdoor parks, and rail lines around the site
Site Analysis — Loop Context

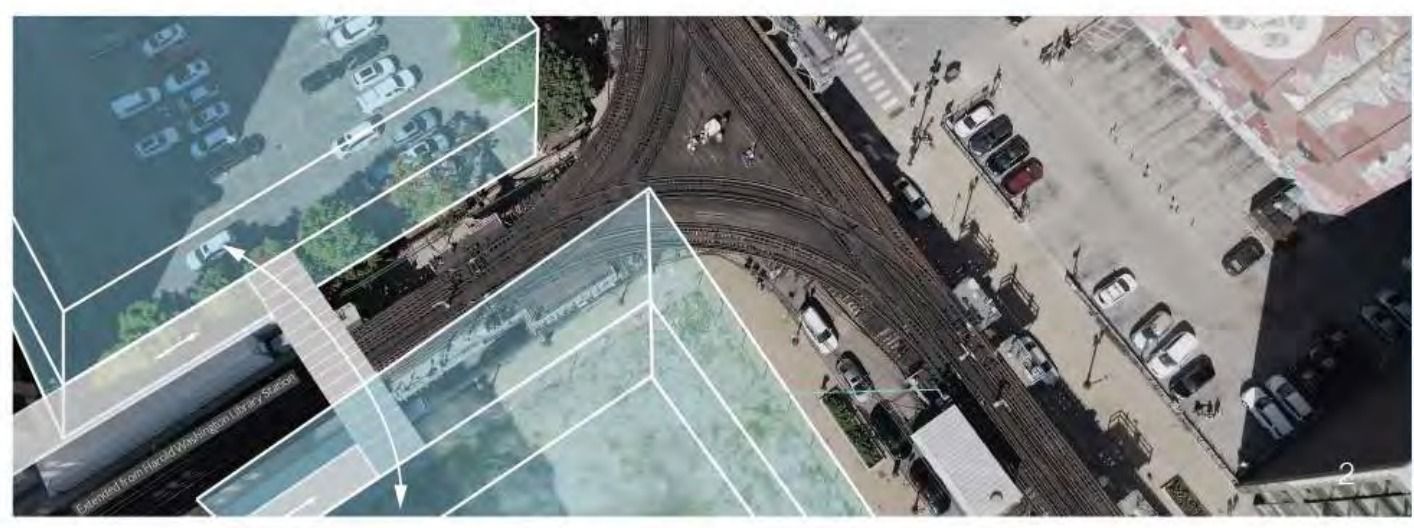

Aerial sketch of the building volume extending from the Harold Washington Library Station along the elevated tracks
Sketch of the Building Volume

Concept

The plan folds around the elevated tracks, with water gardens on either side feeding a central circulation system that runs light, water, and air through the building — the mechanics of plant growth made visible rather than hidden in a wall cavity.

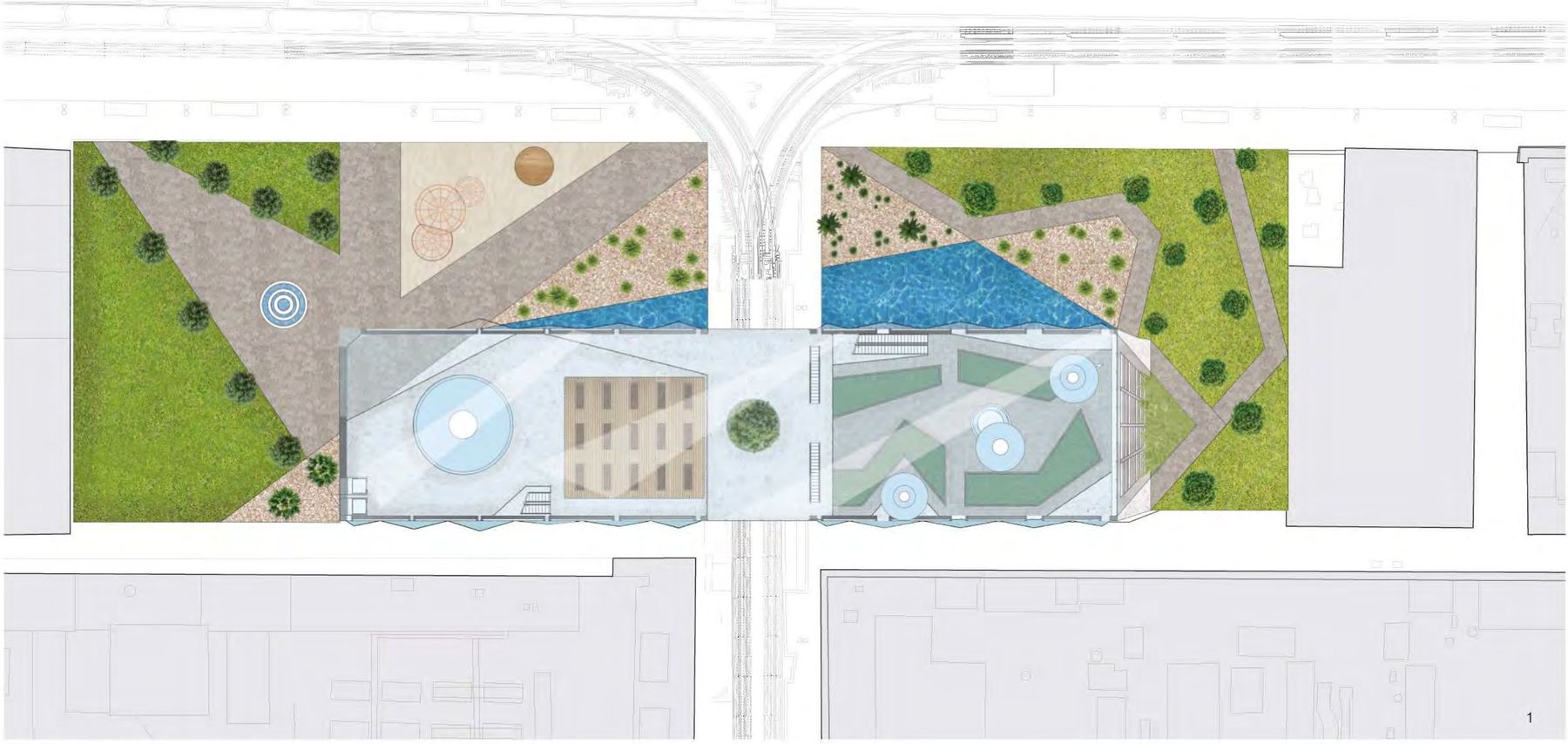

Site plan showing the building straddling the elevated tracks with water gardens on either side
Site Plan

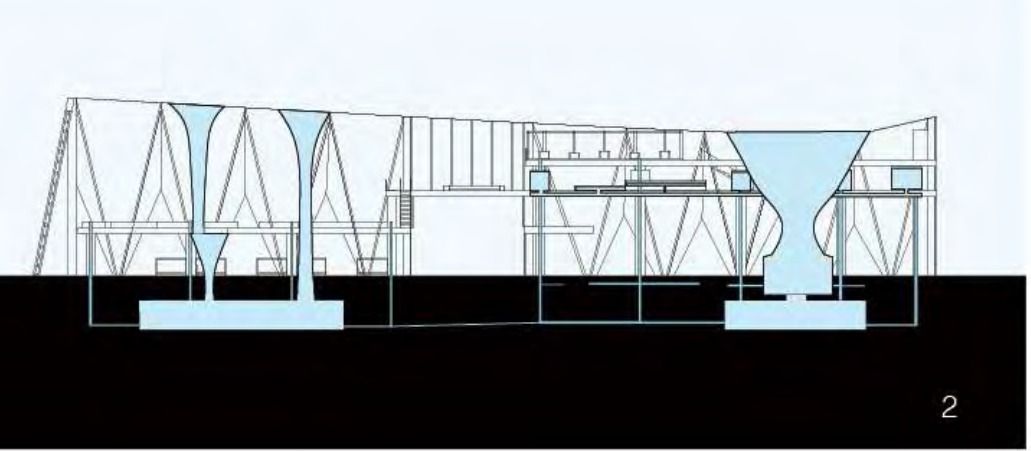

Water circulation section diagram showing funnels channeling water underground through the building
Water Circulation Section

Structure

In section, funnels of varying sizes puncture the folded roof, channeling water and daylight down into the building and, in doing so, letting the sound of falling water guide visitors through the space instead of signage.

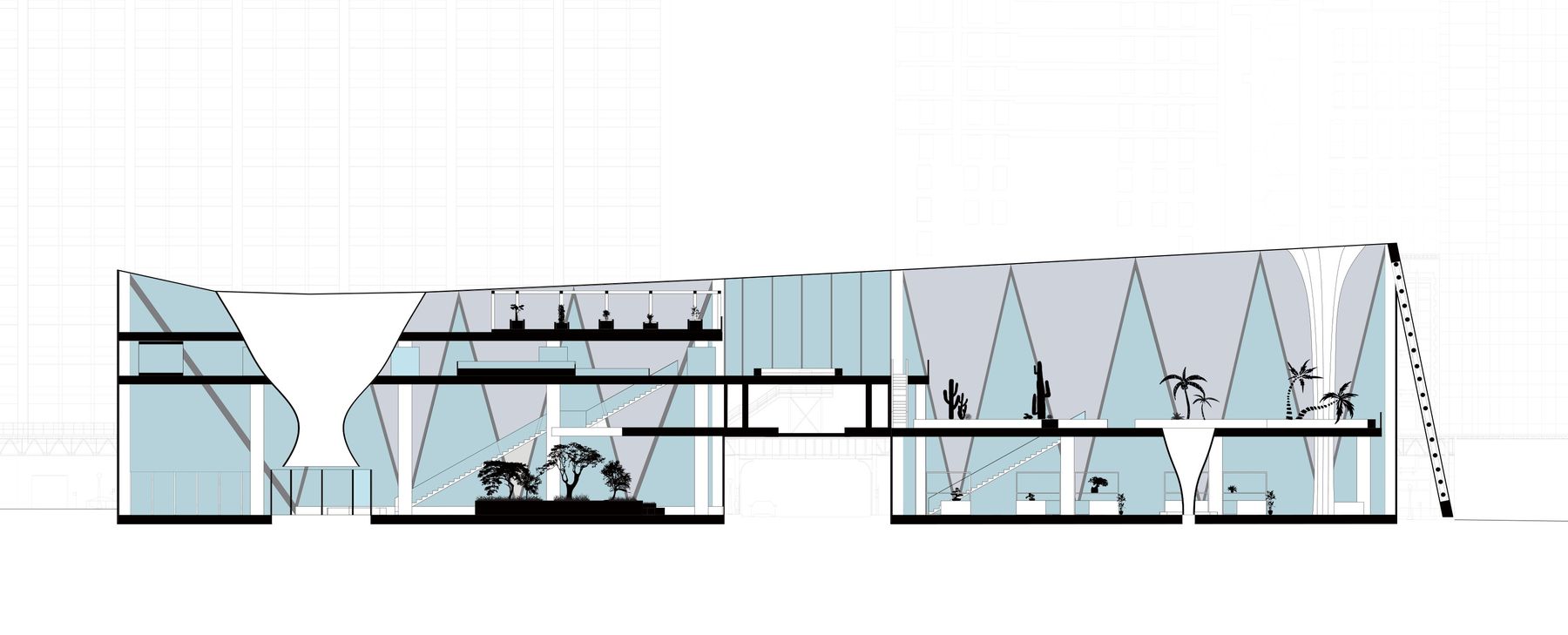

East city section cut showing the folded roof, funnel skylights, and interior planting
East Section Cut

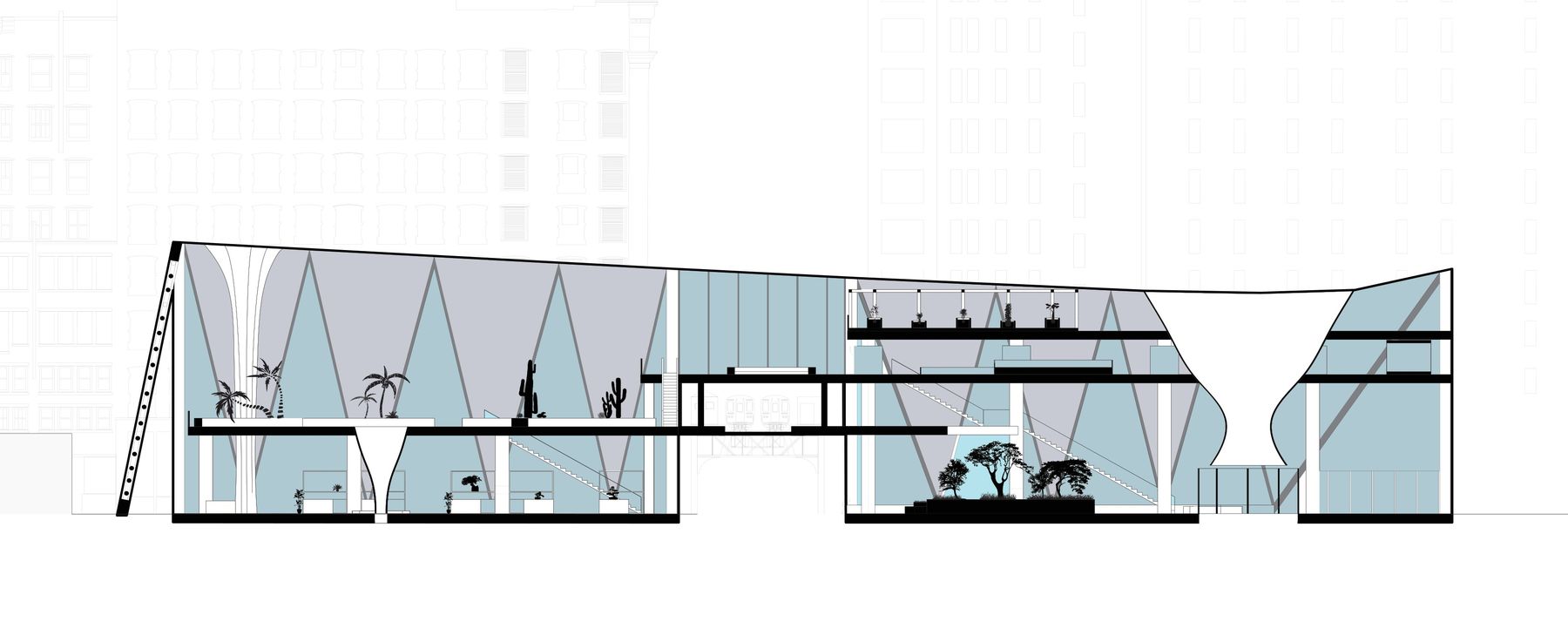

West city section cut showing the folded roof, funnel skylights, and interior planting
West Section Cut

Design Process

Early studies moved between hand-built models — a wheeled Wardian case for walking plants through the city, a folded-truss study model — and the finished building, so the project's environmental logic could be tested by hand before it was tested in section.

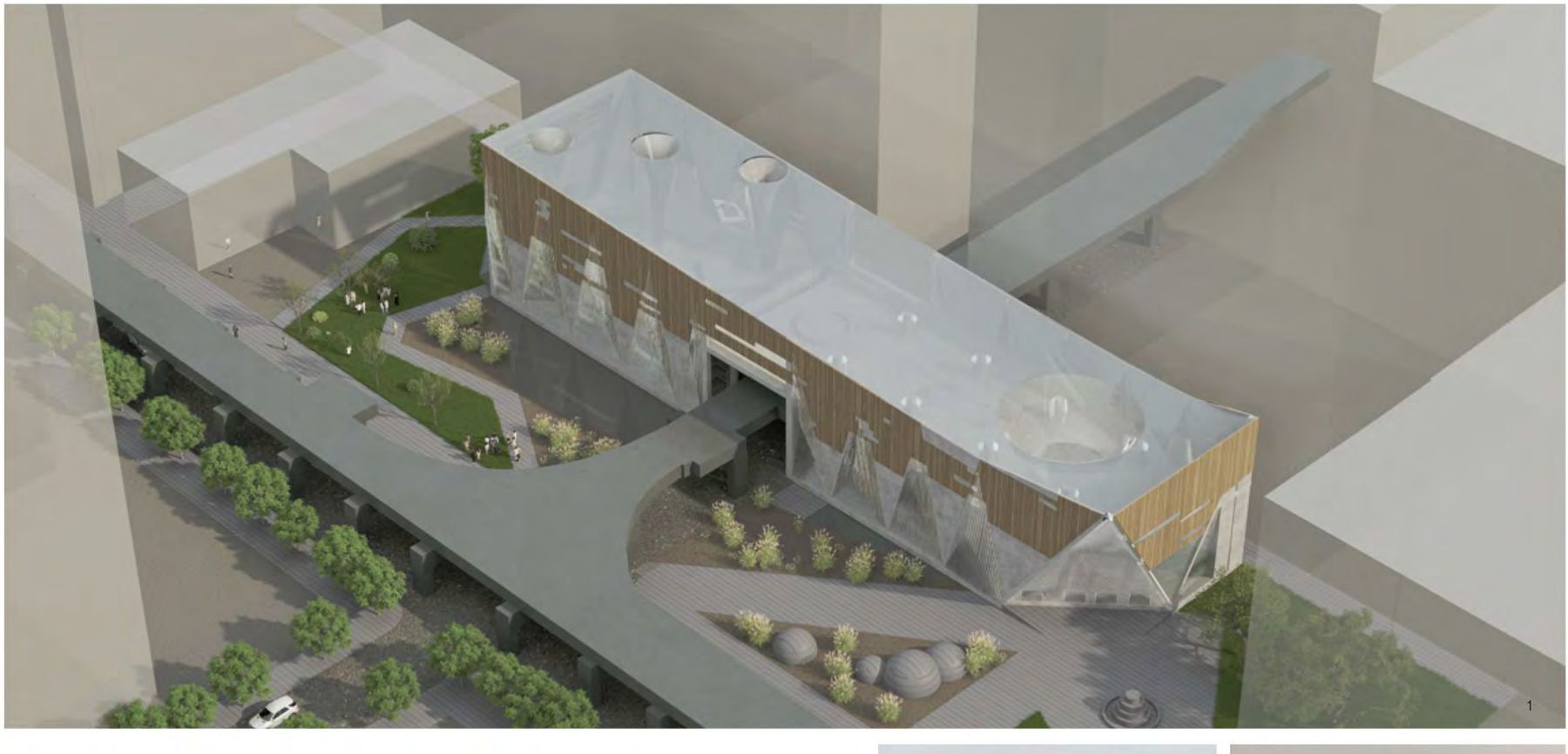

Bird's-eye exterior rendering of the building among Loop rail infrastructure
Exterior, Bird's-Eye View

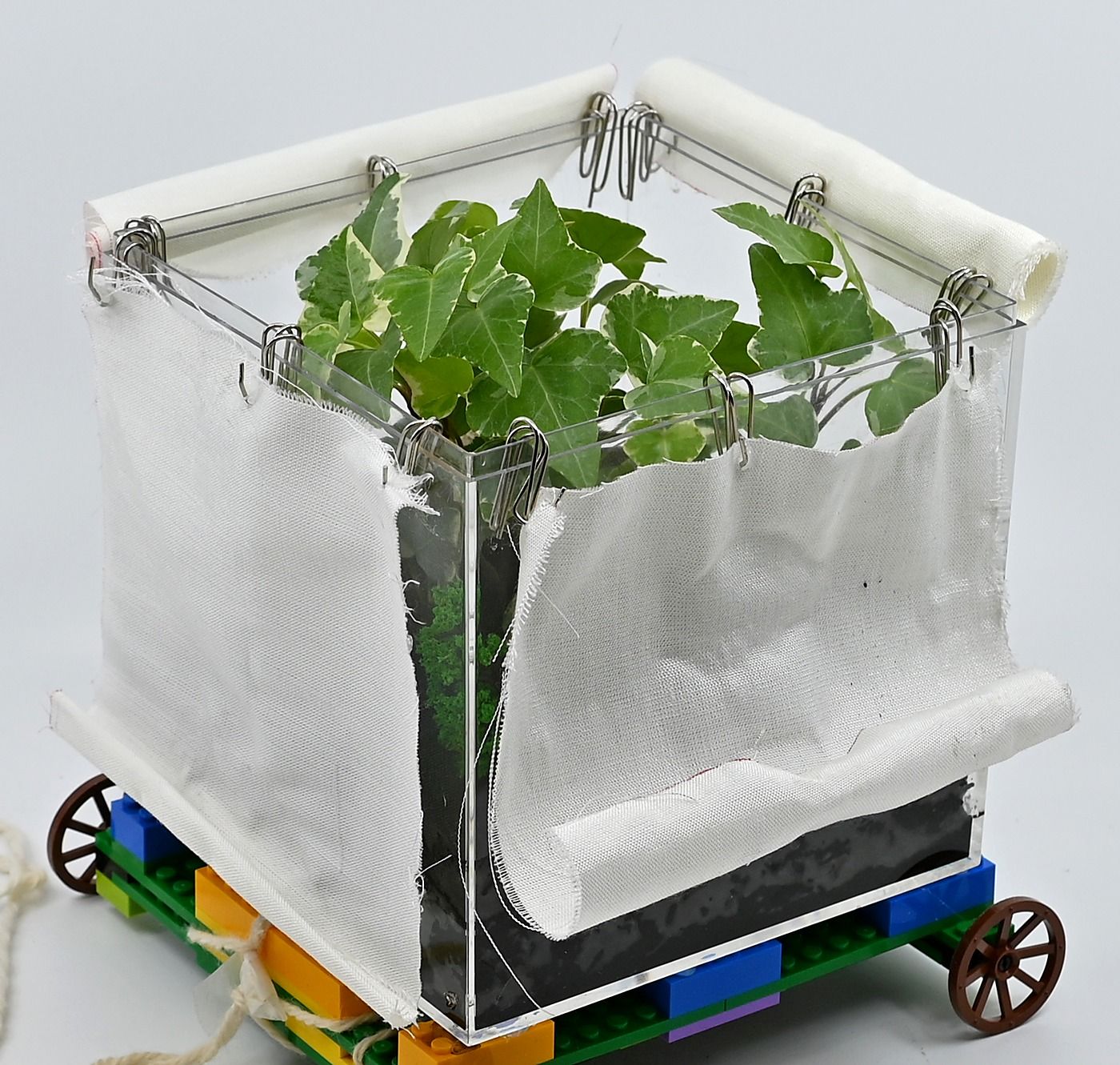

Physical study model of a wheeled Wardian case for walking plants
Study Model — Wardian Case

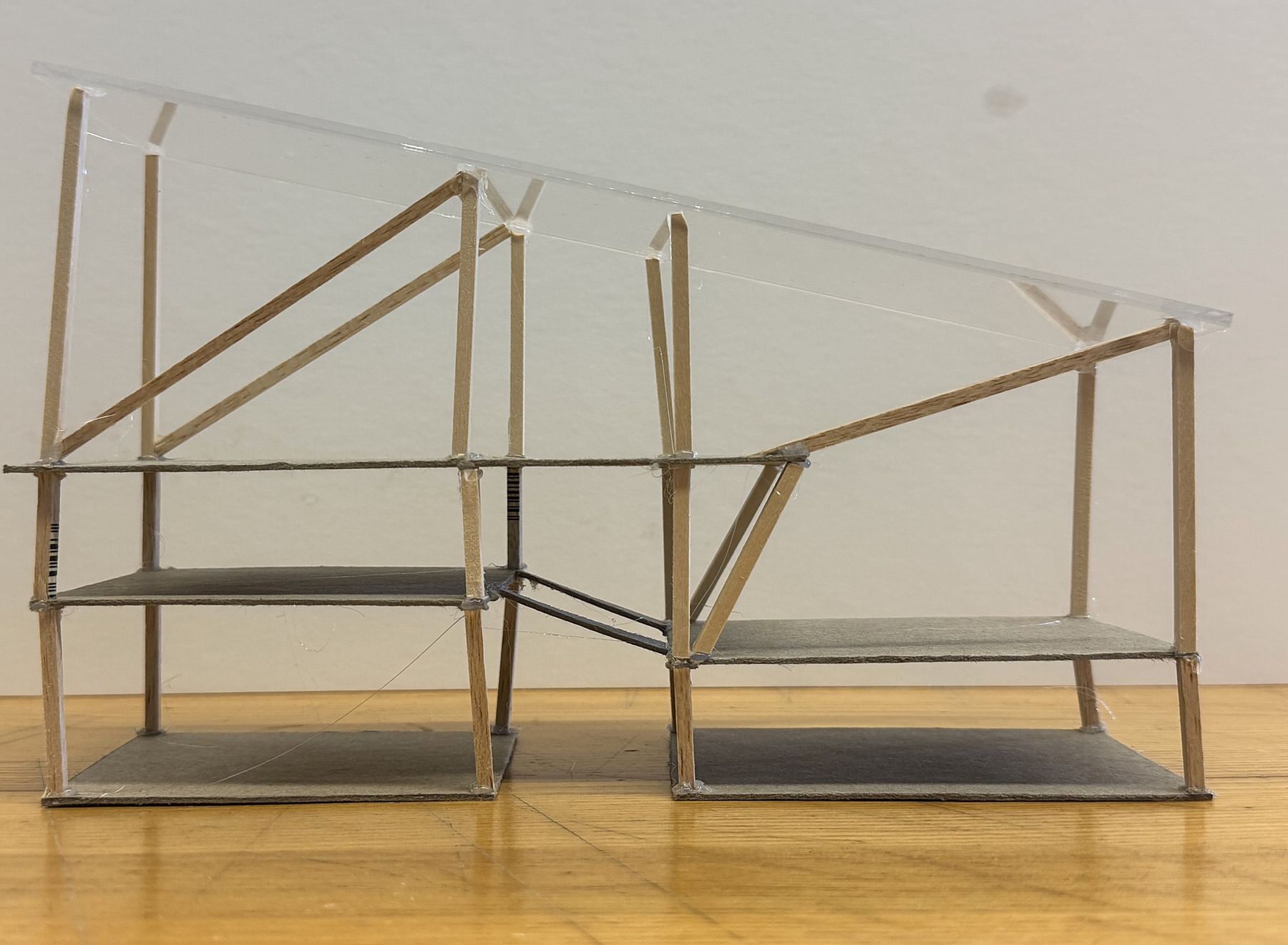

Physical study model of a folded-truss structure
Study Model — Folded Truss

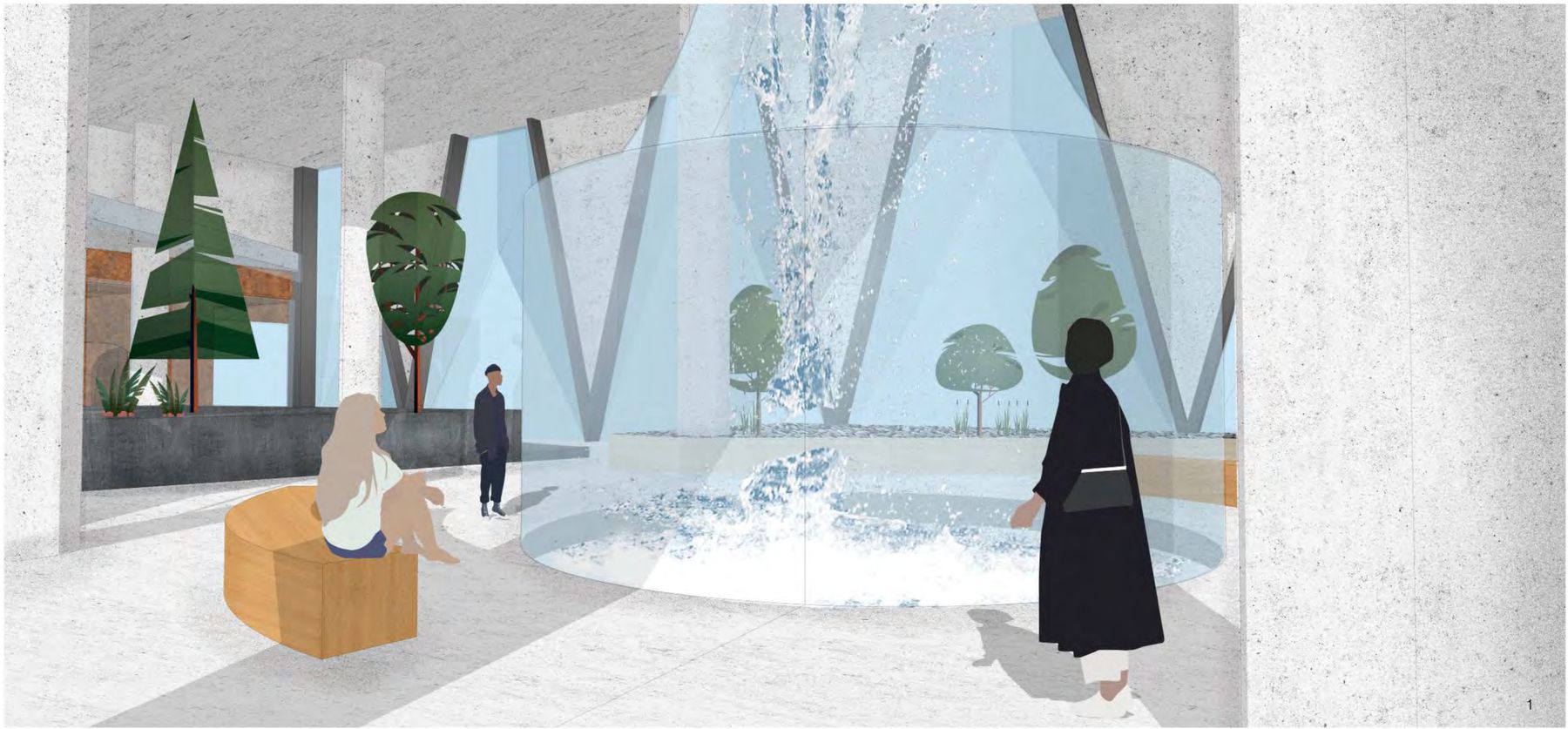

Interior rendering of a glass-walled fountain at the ground floor, with visitors watching water fall

Ground Floor Perspective, Fountain Room

← Back to All Work

Construction Detail / Studio Project / Hand Rendering

PROJECT 05 / 05

Other Works

Chicago, IL · Marker Drawings & Ceramics, 2022–2026

Marker rendering of a lounge and bar interior with a long communal table Marker Rendering — Lounge Interior

Beyond the single-building projects, this is where studio construction details, professional practice drawings, and hand-rendering work live — evidence of both the technical range and the drawing hand behind the rest of the portfolio.

PracticeZhengyi Interior & Engineering
Studio ProjectMiami Fieldhouse Natatorium
Hand WorkMarker Renderings, Ceramics
Span2022–2026

Professional Practice

Drafted during an internship at Zhengyi Interior & Engineering under senior designer guidance — three construction details translated and annotated with material assembly information for portfolio presentation.

Photo of a curved skylight atrium under construction, showing the illuminated ring ceiling and scaffolding below
Curved Skylight Transition — Atrium During Construction
Construction detail drawing of the curved GRG panel and steel stud assembly at the skylight transition
Curved Skylight Transition — Detail Drawing
Rendering of a hotel corridor with bronze stainless steel trim and wall sconces along a curved column
Curved Corridor Ceiling — Perspective Render
Construction detail drawing of the curved corridor ceiling, brick wall, and light-gauge steel stud assembly
Curved Corridor Ceiling — Detail Drawing
Reflected ceiling plan showing the stainless steel edge trim layout and dimensions across the curved ceiling
Ceiling Trim Layout — Stainless Steel Edge Dimension Plan
Photo of the finished curved ceiling with recessed lighting and stainless steel edge trim
Ceiling Trim — Finished Construction

Academic Studies

A studio project for a natatorium in Miami, built in concrete with pilasters as its primary structure and a Warren 9 truss spanning 102 feet. A dedicated VAV system with separate dehumidification keeps moist pool air from reaching the rest of the building — mechanical coordination that doesn't show up in a rendering but has to be solved anyway.

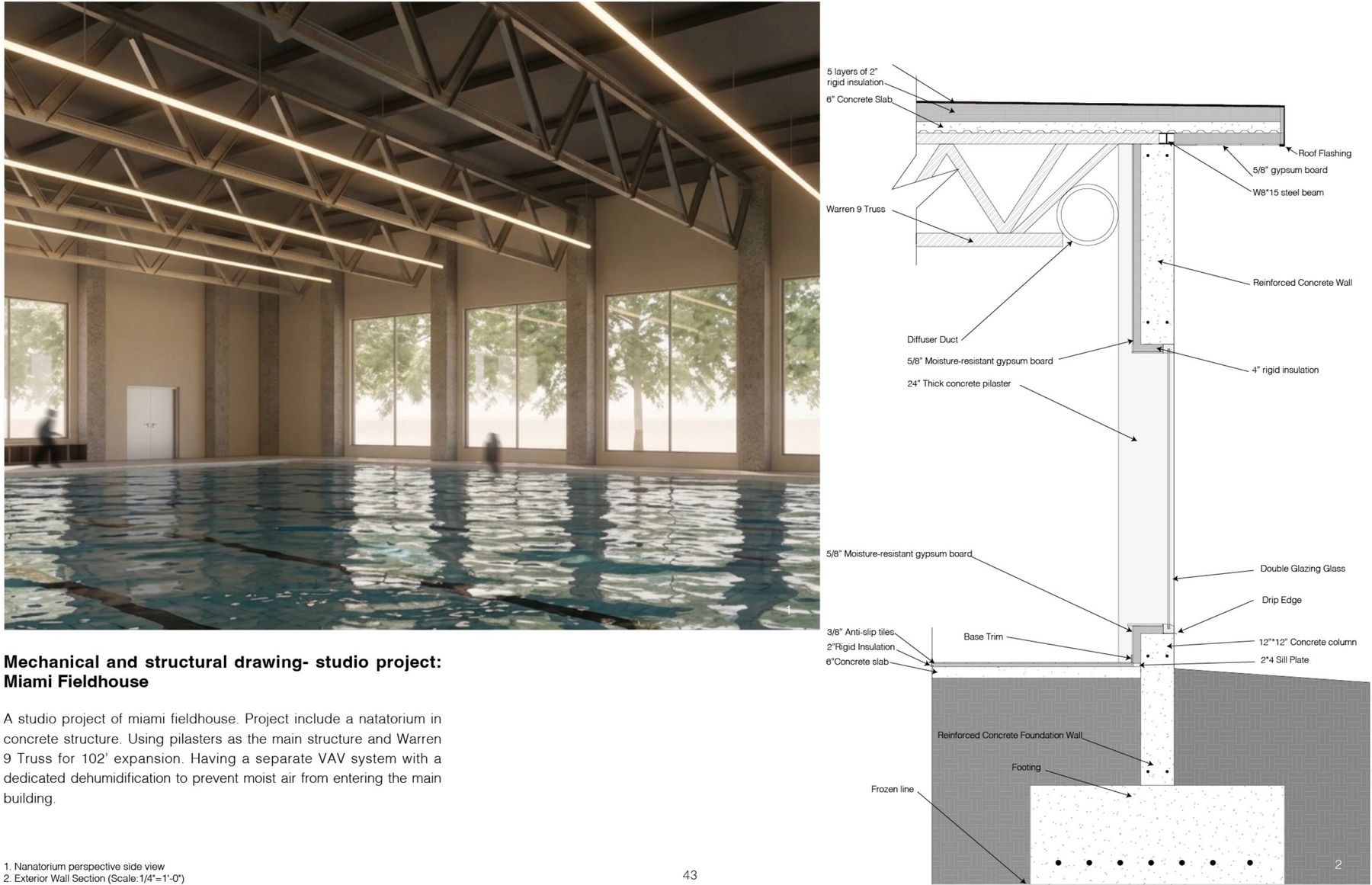

Interior rendering of the Miami Fieldhouse natatorium alongside a detailed exterior wall section drawing
Natatorium Perspective & Exterior Wall Section

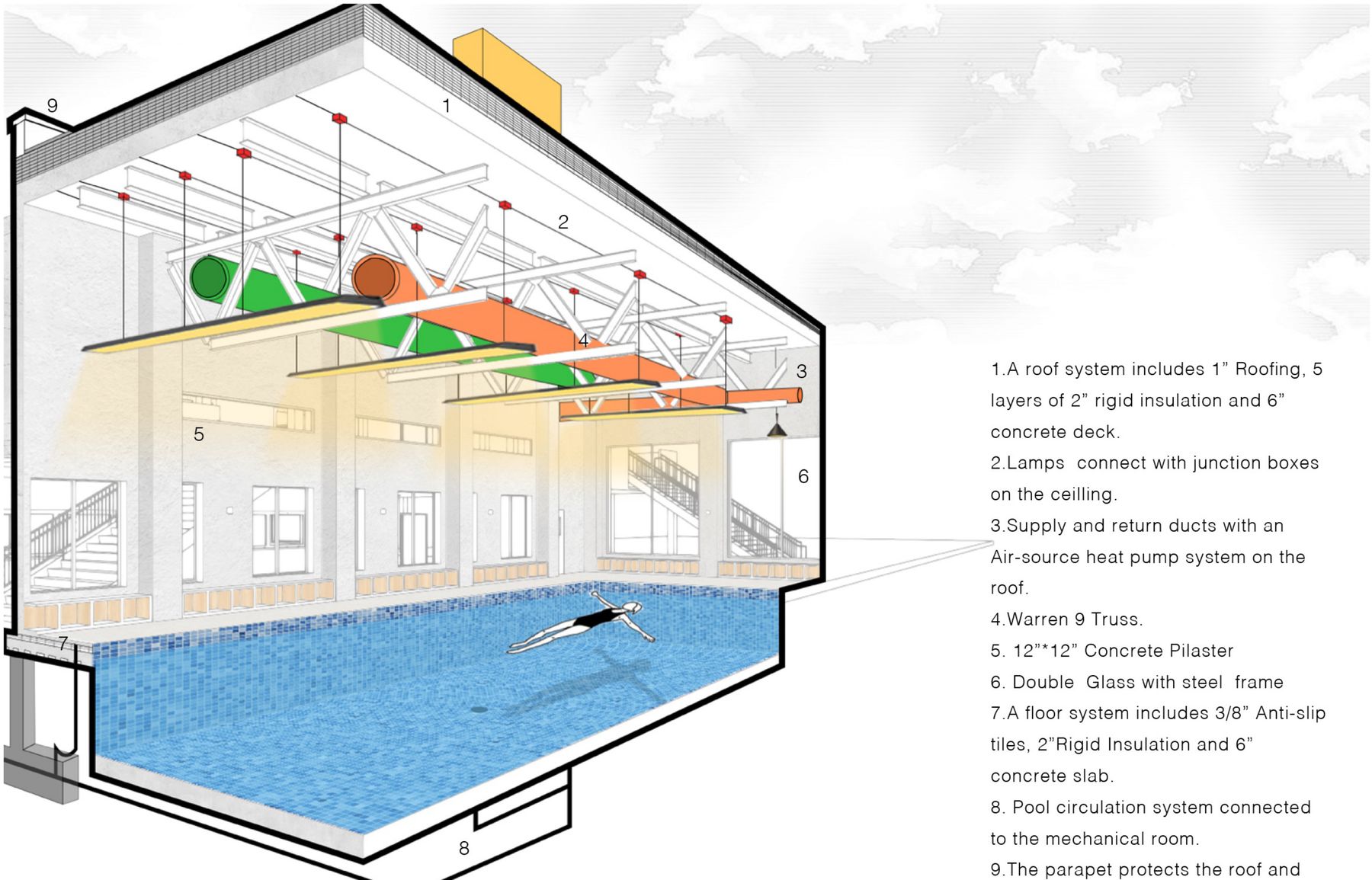

Isometric cutaway diagram of the natatorium's roof, mechanical, and floor systems, numbered and annotated
Mechanical & Structural Systems Diagram

Hand Drawing

Marker renderings developed alongside digital work, from quick interior studies to fully rendered perspectives — a way of testing material and light decisions by hand before committing to a 3D model.

Signed marker rendering of a residential living room with an orange sectional sofa and a large abstract painting
Marker Rendering — Living Room Interior
Signed marker rendering of a living room with a pink accent wall, built-in bookshelf, and wall-mounted TV
Marker Rendering — Living Room Interior II
VIEWING 01 / 05
